6" dia. 36" l ex-cell-o 74 center lapper, dresser, comp
6" Dia. 36" L Ex-Cell-O 74 CENTER LAPPER, DRESSER, COMP
6" Dia. 36" Length Ex-Cell-O 74 CENTER LAPPER, DRESSER, COMPLETE

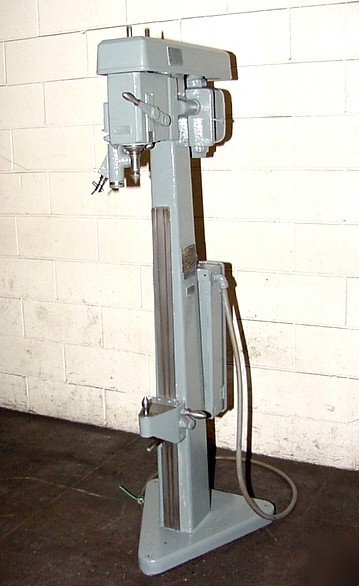

EX-CELL-O CENTER LAPPING MACHINE
MODEL: 74 SERIAL NUMBER: 1247 NEW: 1960's
WORKPIECE LENGTH .................................. 36"
WORKPIECE DIAMETER ................................ 10"
CENTER DIAMETER ................................ 15/16"
STONE DIAMETER ..................................... 1"
DISTANCE, COLUMN TO SPINDLE .................... 5-1/4"
LAPPING STROKE ................................. 1-1/2"
DRESSER STROKE ................................. 1-1/4"
DRESSER ADJUSTABLE ANGLE ............... 60 TO 120 DEG.
DRESSER FIXED DIAMETER ............................. 1"
TAILSTOCK CENTER ................................. #2MT
SPINDLE SPEEDS (4) ....... 665, 1200, 2300 AND 4300 RPM
1/2 HP 3/60/220-440 VOLT MOTOR
