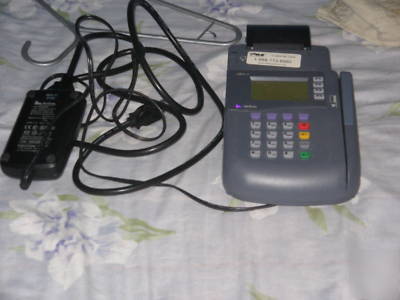

Verifone omni 3350 smart/magnetic credit card terminal
Taking full advantage of VeriFone s Verix operating environment and up to 3 Mbytes of memory, the Omni 3350 securely supports and runs multiple applications in a single device. Our unique imple-mentation of application separation at both the hardware and software level reduces the need for time-consuming and costly re-certifications when adding or modifying applications. VeriFone s VeriShield security architecture offers sophisticated file authentication capabilities to prevent the execution of unauthorized software. Moreover, the 3350 terminal is certified to meet emerging global smart card standards such as EMV.
An intuitive ATM-style interface; an integrated, high-speed thermal printer; up to five Security Access Modules (SAMs); and a virtually future-proof upgrade path add to the compelling attractions for merchants.
Securely supports and runs multiple applications on the same terminal
Intuitive ATM-style interface minimizes training and reduces help desk calls
Combination of Omni 3350 and VeriTalk software accelerates downloading and batch settlement through the use of a 14.4-Kbps modem and advanced file compression.
Up to 3 Mbytes of memory and dynamic memory allocation improve efficiency and maximize the number of applications that can be placed on a single terminal.
Flash memory enables remote downloads of applications.
VeriShield security architecture offers unique file authentication capabilities.
Up to five Security Access Modules (SAMs) including a second full-sized card help protect sensitive financial data and support multiple smart card schemes.
The 3350 terminals is certified to meet the latest smart card standards worldwide, such as EMV.
Optional LAN support is available.
Intuitive ATM-style interface, large 8 x 21 backlit display and extra-size menu prompts virtually eliminate training and reduces calls to the help desk.
Sleek, compact design reduces clutter and saves precious counter space for merchants.
Triple-track, high-coercivity card reader handles most magnetic stripe cards including new drivers licenses.
Microprocessor 32-bit microprocessor
128 x 64 pixel graphical LCD with backlighting; supports 8 lines x 21 characters
Triple track (tracks 1, 2, 3), high coercivity, bi-directional
Primary Smart Card ISO 7816, 3V or 5V synchronous and asynchronous cards; EMV 3.1.1 certified
SAM Card Reader Five Security Access Module (SAM) readers: four micro modules and a second full-sized merchant card
3 x 4 numeric keypad, plus 8 soft-function keys and 4 screen-addressable keys
Two RS-232 ports and two telco ports support peripherals including PINpads, check readers and bar-code wands
Integrated thermal printer with graphics capabilities, 12.5 lines per second, 24/32/42 columns; paper 58 mm (2.25 in.) standard roll, single ply
High-speed dial modem (Bell 103/212a, CCITT V.21/V.22/V.22bis, 300/1200/2400/14400 bps, synchronous and asynchronous)
Security VeriShield file authentication
Depth, includesprinter spool: 292 mm (11.5 in.)
0 to 40 C (32 to 104 F) operating temperature;
5% to 90% relative humidity, non-condensing
182-242 VAC, 50 1 Hz; 94-135 VAC, 60 1 Hz; DC input 20-34 VDC
