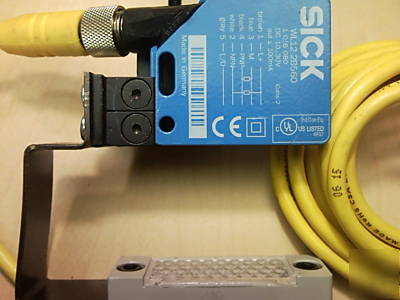

Sick photo eye WL12-2B560 series WL122B560
Operating range and operating reserve
_ Operating range _ Scanning range,
Scanning range, max. typical/on refl. 4 m /PL 80 A
Light source1), light type LED, red light
Light spot diameter 30 mm at 1.5 m
Supply voltage VS 10...30 V DC2)
Current consumption4) 30 mA
Switching outputs Transistor outputs QP and QN
Output current lA max. 100 mA
Max. switching frequency6) 1500 Hz
Operating mode Light- or dark-switching
Control cable L/D 0 V or open-circuited light-switching
Control cable L/D VS dark-switching
Connection type M 12 plug, 5-pin
Circuit protection8) A, B, C
Ambient temperature TA Operation 40 C...+ 60 C
Housing material Zinc die-cast housing
