Pll fm transmitter with lcd display 87,5-108 mhz 8 watt

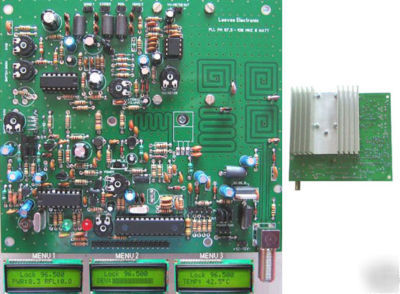

High quality Built & Tested PLL FM transmitter 87.5-108 MHZ 8 WATT
Ideal as driver for Linear FM from 50 Watt to 1200 Watt
(BLW60C-MRF151G-BLF278-BLF369-BLF574)
Input Mono 1 - Audio Response 20 Hz to 20 kHz
Input Mono 2 - Audio Response 20 Hz to 15 kHz
Input MPX (Stereo) - Audio Response 20 Hz to 100 kHz
Adjust power from the Push Button
Show AUDIO LEVEL as bargraph on LCD
Protection if the volt >15 Volt
Protection if the power >8 Watt
It has inputs for accepting converted (thru a directional coupler , not INCLUDED) Forward and Reflected power
