Okuma impact lu-25 4-axis cnc turning center

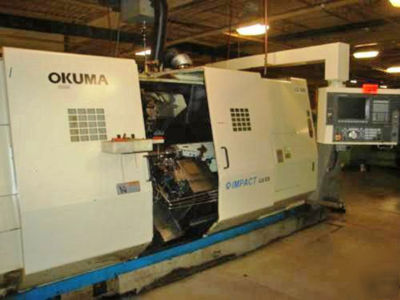

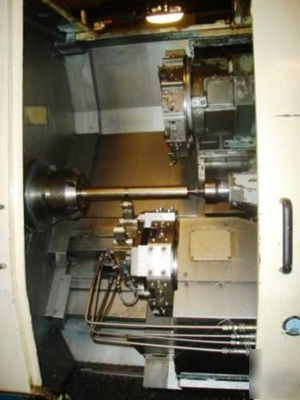

OKUMA Impact LU-25 4-Axis CNC Turning Center
Swing Over Bed ........................ 25.50"
Swing Over Carriage ................... 16.54"
Swing Over Cross Slide ................ 12.90"
Max. Turning Diameter ................. 16.54"
Distance Between Centers .............. 47.24"
X-Axis Travel: Upper Turret ........... 8.2" + 3.5"
Lower Turret ........... 5.12" + 2.5"
Z-Axis Travel: Upper Turret ........... 51.18"
Lower Turret ........... 47.24"
Bar Capacity .......................... 3.15"
Spindle Speed Range ................... 65-3500 RPM
Spindle Drive Motor ................... 30 HP / 20 HP
Spindle Hole Diameter ................. 3.94"
Manual Tailstock with Hydraulic Quill
