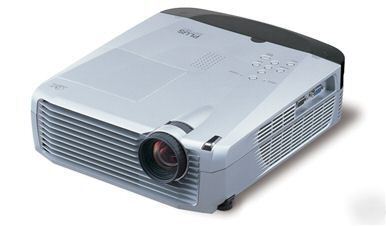

New in bo U7-132H digital projector
The U7-132h is the new high lumen projector from PLUS. Texas Intruments' next-generation DLP DDR chip, an updated design, improved optics, and many more improvements to every feature. Use of the new DDR dramatically improves the projector's contrast with a high 2000:1 ratio. PLUS's unique Advanced Color Wheel (ACW) preserves brightness, while allowing for greatly enhanced color reproduction and astoundingly clear picture quality.
Advanced, next generation features standard on the U7-132h include the following: RS232 controls, manual and digital zoom, "Eco-Mode," increasing lamp life by up to 30%, and an on-screen timer to make sure your presentations stay on track.
The U7-132h offers support for the latest video standards including 480p, 576p, 720p and 1080i HDTV imaging and allows for video input from sources including component (YCbCr, YPbPr), S-video and composite video.
Further protect your investment: the U7-132h can be set to require the input of a password at startup. We recommend affixing a label to your projector indicating that it is password-protected to prevent tampering or theft. Also, the standard security cable slot is featured on all PLUS projectors.
Eco-Mode: Approximately 50% increase in
1:1.2 Manual Zoom, Manual Focus
300-Watt High-Performance Compact Lamp
Note: Projector lamps contain trace amounts of mercury. Do not throw in trash. Dispose of lamps according to local, state, or federal laws.
Approximately 2000 Hours in Normal Mode
Approximately 3000 Hours in Eco-Mode
NTSC3.58, NTSC4.43, PAL, PAL_N, PAL_M, PAL60, SECAM, YCbCr (NTSC, PAL), YPbPr (480p, 576p, 1080i, 720p)
RGB (Analog/Digital)/YCbCr/YPbPr: DVI-Ix1, Mini D-Sub 15 pin x 1, Composite Video: RCA x 1, S-Video: Mini DIN 4-Pin x 1, Audio (RGB/Video): 3.5mm Stereo Mini Jack x 1, PC Control: D-Sub 9-Pin x 1, Remote Mouse: USB Type B x 1, RS232C: Mini DIN 9 pin x 1
3.26 (H) x 10.1 (W) x 12.59" (L)
430 Watts (Normal Mode), 360 Watts (Eco-Mode), under 20 Watts (Standby)
English, French, German, Italian, Spanish, Swedish, Korean, Chinese, Japanese
Full-Auto Adjustment, Digital Keystone Correction (20 degrees), Digital Zoom (x 2), Freeze, Mute, Presentation Timer, Quick Color Adjustment, Security Password
Lens Cap, IR Remote Control Card, AAA Batteries for Remote Control x 2, Power Cable (1.8m/6') x 1, VGA Cable (2m/6.5'),Video Cable (2m/6.5') x 1, S-Video Cable (2m/6.5') x 1, 3.5mm Mini Plug for Audio Cable (2m/6.5') x 1, 3.5mm Stereo Mini Jack to RCA for Audio Adapter (0.15m/0.5') x 1, USB Cable (2m/6.5'), DVI-I Mini D-Sub Adapter (0.18m) x 1, Soft Carrying Case x 1, User's Manual (Booklet and CD-ROM), Security Label x 1
* Advanced Color Wheel (ACW) allows for further enhancement of color reproduction.
* Two simultaneous data input terminals.
* Double Security: Password protection feature and security cable slot.
* User-selectable "Eco-Mode" to help you save valuable lamp life hours by up to 30%.
* High contrast ratio of 2000:1 gives clear crisp images. Black looks black and white looks white.
* Auto-source features automatically identifies the input as RGB or Video before projecting.
* Improved video clarity with DLP DDR chip by Texas Instruments.
* Automatically adjusts the phase, clock speed, and resolution of the RGB signal
* Enhanced presentation support with on-screen timer.
* Support for High-Definition (480p, 576p, 1080i, 720p) broadcasts with line-doubling function.
* On-screen user interface features simple pull-down menus.
* Digital keystone correction, zoom, smooth, mute, and freeze commands.
* Easily accessible PC-control RS232 port.
* One-touch foot adjustment : Easily adjust the projector's position using front foot adjuster.
