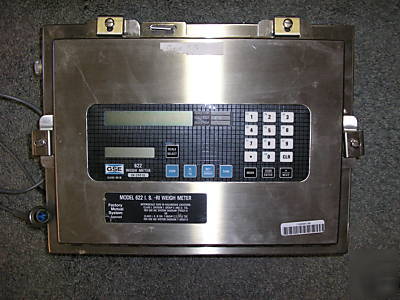

Gse model 622 is intrinsically safe digital weigh meter
(MODEL 622 I.S. -RI WEIGH METER.) SERIAL NUMBER 06619.
DIMENSIONS ARE 18" LENGTH X 12" WIDTH X 6" HEIGHT. THIS COUNTER SCALE IS GUARANTEED WORKING, NOT D.O.A.
Programmable RS232 bi-directional Communication
Two Scale or Dual-range Operation Standard
Battery Operation or AC Operation in Hazardous Area
Programmable Function Keys Simplify Operation
Remote Industrial (I.S. RI): stainless steel
Dimensions: 17.51 W x 51, D x 121, H, Wt: 22 lbs.
Meets N.I.S.T. H-44, Class III requirements
Adjustable filtering for weighing environment
Secondary Display:16-character LCD dot matrix
7.2 VDC excitation, 4-350 ohm cells maximum
Bi-directional RS232C serial port for printer or computer input/ output. Connections to printers, computers, remote platforms, or other peripheral devices must be made in accordance with GSE System Drawing T-21031-D
Input: 120 VAC - 20% +10% (240 VAC optional)
Output: 12.5 VDC, 250 MA maximum
Output Voltage (Vo): 12.OV nominal
Approximate Discharge Time: 150 hours (based on use with (1) 350 ohm load cell, without added options)
Dimensions: 10.75" L x 6.75" W x 9.9" H
