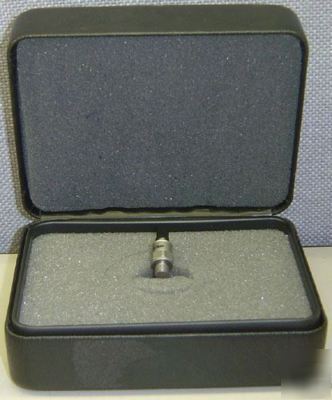

Dytran 3200B4 LIVM High Shock Accelerometer
Specifications are from Dytran and may vary slightly due to upgrades, options or revisions this unit may or may not have.
Link to Datasheet: Dytran 3200B4 Accelerometer (PDF)
Dytran manufactures a broad range of accelerometers serving industries such as Aerospace, Automotive, Medical, Laboratory, Commercial and Industrial.
Specifications per Model 3200B4:
Sensitivity (Nom.) [2]: 0.5 mV/G
Electrical Noise: 0.0014 G's
Discharge Time Constant, Nom.: 1.0 second
Low Frequency -3db Point, Nom.: .16 Hz
Low Frequency -5% Point: .50 Hz
Transverse Sensitivity, Maximum: 3.0%
Output Impedance, Nom.: 100 Ohms
Output Voltage Bias, Nom.: +11 VDC
Supply Current Range [4]: 2 to 20 mA
Compliance (Supply) Voltage Range [4]: +18 to +20 VDC
Operating Temperature Range: -60 to +250 F
Size (Hex x Height) [5]: 3/8 x .64 inches
Connector, Top Mounted: 10-32 Micro-Coaxial
Material, Housing/Connector: 17-4 PH Stainless Steel
Mounting Provision, 3200B/3200BT/3200BM: 1/4-28/10-32/M6x1.0 integral stud
Isolation, Case to Mounting Surface: 10 megohms
[1]Model series 3200B feature 1/4-28 mounting stud. All other characteristics are identical.
[2] Measured by impacting against calibrated force sensor. NIST traceable.
[3] Percent of full scale or any lesser designated full scale range, zero-based bet fit straight line method.
[4] Power only with Dytran or Dytran approved current source type power unit. Do not supply power without current limiting. You will destroy the integral electronics.
[5] Height measured from mounting surface to top of connector. Integral mounting studs are .20 in. long.
