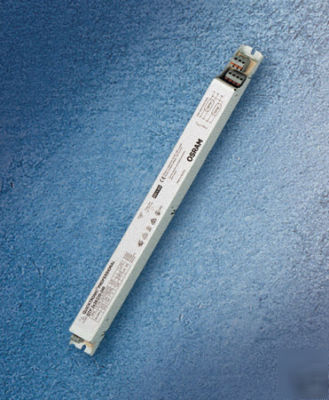

Osram quicktronic T8 dimmable ballast 1-10V HF1X18W-58W
OSRAM Quicktronic T8 Dimmable Ballast 1-10V HF1x18W-58W
* "Fluorescent lamps-ECG - T8 - 1...10V DIM"
* Line frequency: 0, 50 to 60 Hz
* Digitally controlled preheating
- Optimum preheating in any dimmer setting
- Cut-off above 80% luminous flux
* Design/Version: ECG 1-10 V
* Standard: DIN VDE 0875/CISPR 15/EN 55015 / EN 61547 / IEC 61000-3-2/EN 61000-3-2
* Operating frequency : 40 kHz 2)
* TH full width at half maximum : 140 s
* Nominal voltage : 230-240 V
* DC voltage : 154...276 V 1)
* Max. no. of ECGs on circuit breaker 10A : 37
* Max. no. of ECGs on circuit breaker 16A : 61
* TH full width at half maximum : 170 s
* Max. no. of ECGs on circuit breaker 10A : 25
* Max. no. of ECGs on circuit breaker 16A : 41
* TH full width at half maximum : 210 s
* Wire preparation length, output side 8..11mm
* Wire preparation length, input side 8..11mm
* Maximum operating temperature at the Tc : 70 C
* Ambient temperature range : 0 ... +50 C
* Model: HF 1x18/230-240 DIM / HF 1x36/230-240 DIM / HF 1x58/230-240 DIM (Available for selection)
* Cater to Tube Watt: 1x18W , 1x30/36/38W or 1x58W (Available for selection)
Remark: COLOR MAY SLIGHTLY VARY FROM ORIGINAL PICTURE. PLEASE KINDLY UNDERSTAND.
Any further enquiry, pls don't be hesitate to contact me via ****@yahoo.com.hk"
~Delivery Time : 7 - 14 business days normally but may be sometimes about 24 business days for some countries.
Our Ref. G400/HD210/PM165/OP11
