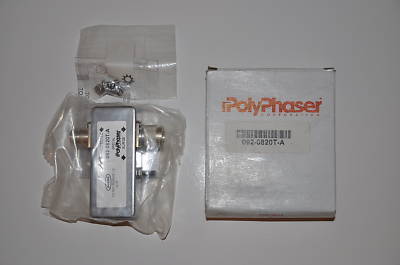

New polyphaser 092-0820T-a tta application
The 092-0820T-A works in conjunction with 15Vdc injection onto the coax line and the pickoff at the tower top preamp.
It has dc continuity, but will only allow voltages to pass unclamped in the 0 to +15V range. It has spike protection to supress spikes over +17V to -1V.
The VSWR is _<1.1:1 with an insertion lossof _<0.25dB for the frequency range of 1.1 GHz to 1.6 GHz.
N-Male on Antenna port. N-Female on Equipment port.
