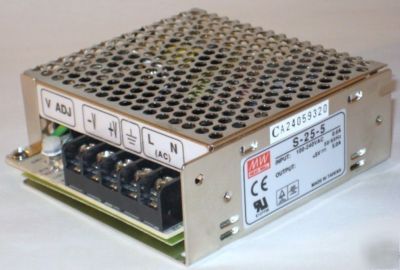

Meanwell mean-well s-25-5 single-out power supply 5V 5A
* Make: MeanWell (Mean-Well)
* Model / Part #: S-25-5 (S25-5) (S-255) (S255)
* 100VAC - 240VAC (100 - 240 Volts AC) (100 - 240 VAC) (100V - 240V AC)
* 50Hz / 60Hz (50 / 60 Hertz) (50 / 60 Hz)
* +5V (Plus 5 Volts) (+ 5 V)
* Description: Single-Output Switch-Mode (SwitchMode) Power Supply
Here is some basic information on this series of power supplies...
* AC input voltage range 85~264Vac; 120~370Vdc
* DC adjustment range 10% rated output voltage
* Overload protection 105%~150% hiccup mode, auto-recovery
* Over voltage protection 115%~135% rated output voltage
* Setup, rise, hold time (typ.) 300ms, 50ms, 80ms at full load and 230Vac
* Withstand voltage I/P - O/P: 3kVac, I/P - FG: 1.5kVac, 1 minute
* Working temperature 0~50 C @ 100%, -10 @ deg; C @ 80%, 60 C @ 60% load (refer to derating curve in Detailed Specifications)
* Safety standards UL1012, TUV EN60950-1 approved
* EMC standards EN55022 class B, EN61000-3-2,-3 EN61000-4-2,3,4,5,6,8,11,ENV50204
* Connection 5P/ 9.5mm pitch terminal block
