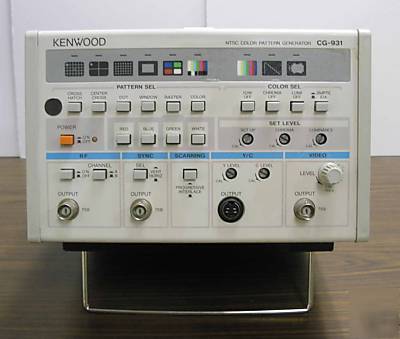

Kenwood NTSC Color Pattern Generator CG-931 ++ Nice ++
This sale is for a Nice Kenwood NTSC Color Pattern Generator Model CG-931. Unit is in good condition and comes with power cable.
COMMON FEATURES: (for the 2 Models S-Output)
An S-output is provided as standard. In addition, Y S and C outputs are provided at the rear panel (BNC connectors), and the output levels of each are variable individually
The setup, chrominance and luminance levels are arbitrarily settable and a calibration signal is provided for each, as a convenience in making simple adjustments and repairs to color TV receivers.
Individual Rasters for Purity Adjustments
Red, blue, green and white rasters are provided for use in verification of purity and in adjustment and inspection of white balance.
Dot and Cross-Hatch Patterns for Adjustments of Linearity and Convergence
A central dot can be used for adjustment of picture tube static convergence, and a cross-hatch pattern can be used for adjustment of dynamic convergence, these being provided as a convenience in adjusting vertical/horizontal amplitude and linearity.
Center Cross and Dot for Convergence Adjustment
A center cross and dot are provided to enable adjustment and inspection of raster alignment and convergence.
A white window on a black background enables testing high-voltage stability.
A video output for monitor TVs (75) and RF output for TV receivers (75) are provided as standard.
To simplify the task of observing the video signal on an oscilloscope, the vertical and horizontal sync signals are provided as outputs. In addition, the sync signals include equivalent pulses and their phase is locked to the subcarrier frequency.
Interlaced and Progressive Scanning
In addition to the normally-used interlaced scanning, progressive scanning is also possible, thereby reducing jitter in the horizontal lines of the center cross and cross-hatch patterns.
When using only the video output or when it is desirable to eliminate interference, the unwanted RF output can be switched off.
While the standard RF channels of the CG-931 are Japanese channels and those of the CG-932 are European channels, they can be switched to the frequencies of other major countries, such as the US channels with the CG-931 and the Italian, Australian, New Zealand and UK channels with the CG-932.
