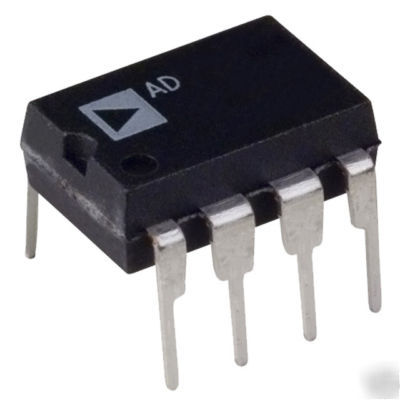

Ic chips: 1 pc AD830AN high speed video difference amp
Wide Common-Mode Voltage Range: +12.8V, 12V
Differential Voltage Range: 2 V
Built-in Differential Clipping Level: 2.3 V
- Symmetrical Dynamic Response
- Excellent Video Specifications
Differential Gain Error: 0.06%
Differential Phase Error: 0.088
High Output Drive of 50 mA min
Specified with Both 5 V and 15 V Supplies
- Low Distortion: THD = 72 dB @ 4 MHz
- Excellent DC Performance: 3 mV max Input Offset
- Differential to Single Ended Conversion
- Resistorless Summation and Subtraction
