Hydraulic 1/2" 6 way steel diverter valve 60 l/m 300BAR
Hydraulic 1/2" 6 Way Steel Diverter Valve 60 l/m 300Bar

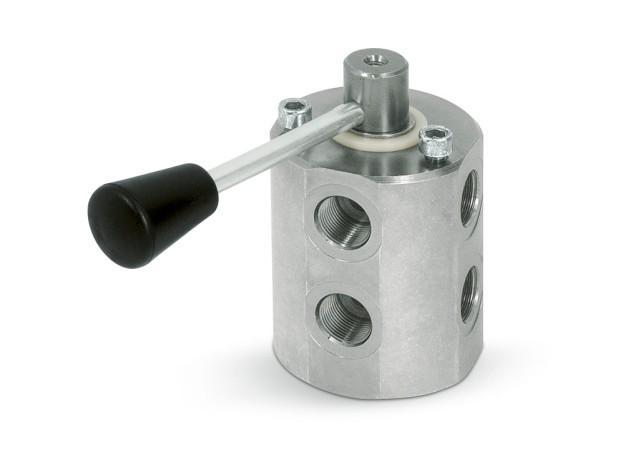

HYDRAULIC 1/2" 6 WAY DIVERTER VALVE - V0932
This valve is used to divert the flow from 2 ways into 4 ports( two at a time alternatively). It's ideal to control 2 actuators.
Applications : Connect P and P' to the 2 pressure flows, ports A and B to the first actuator and ports A' and B' to the second actuator. With lever in position 1, P is connected to A and P' to A'; with lever in position 2, P is connected to B and P' to B'. Use with lever in central position is not recommended.
