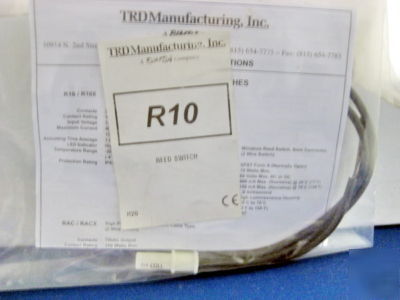

R10 Series Miniature Reed Switch
* Compact low profile Switch/Bracket Assembly
* Switches and Brackets are Nylon and Stainless Steel construction - suitable for wash down or corrosive environments (IP67)
* Quick, Simple Set-up: Requires Standard (slotted) Screw Driver only
* High visibility LED can be seen up to 20 feet
* Magnetically operated, can be located anywhere in the actuator stroke range
* Can be used with all TRD Aluminum Series Actuators (TA, TD, TRA, FM, MSE, MSR), Electroless Nickel Plated Series (EN), and Stainless Steel Series (SS)
Note: Specify "MPR" option when ordering actuator)
* Suitable for all bore sizes (1-1/2" to 12")
* One magnet (MPR) for all switch models)
* Internal circuit protection
* Low or high current models available, AC or DC, and TRIAC type switch for inductive loads
* High visibility red LED (on low current models)
* Choice of lead lengths available on all models
* Optional Quick Connect Threaded Coupling on low current model
* 5-120 Volts AC, 5-110 Volts DC, 150 mA current rating (MAX.)
* Cable options include 24 inch or 120 inch plain cable leads
* Circuit protection consisting of varistor/choke arrangement that will protect switch from transients, voltage spikes and inrush currents usually associated with long cable runs (particularly at higher voltages) and unprotected inductive loads such as relays, solenoids, motors, and motor starters and some PLC's
Switch Application Selection Guide
* Use resistor-capacitor protector **Minimum current = 80mA
400 mA Max. (Resistive) @ 25 C (77 F)
150 mA Max. (Resistive) @ 70 C (158 F)
