New primo CM4052PMI4 precision condenser microphone
NEW! Primo CM4052PMI4 Precision Condenser Microphone

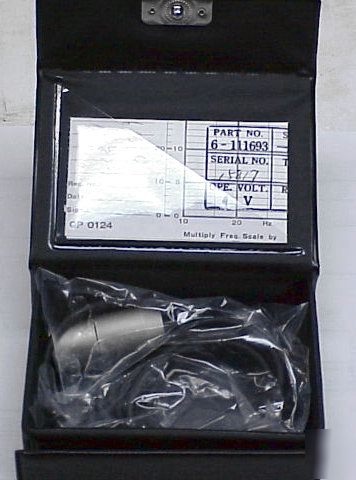

New Old Stock (N.O.S.) in Original Case with test chart
Precision flat frequency response condenser microphone for use in critical acoustic applications.
Complete with case and final test chart.
* Sensitivity: -45db +/- 2.5 db at 1 KHz (RE 0db=1v/Pa)
* Frequency Response 20 Hz to 10 KHz: Flat ( 70 deg incidence within limits)
* S/N Ratio 32 db S.P.L max ca weighting
* Directional Characteristics: Non-directional
* Supply Current: 250 ma max
* Max Input Sound Level: 148db SPL
* Distortion: 0.5% max < 122 db, 1% max <132 db, 1.5% max <135 db
* Nickel plated brass/aluminum housing with metal screen
* 14 mm Diameter, length 33 mm
* Three conductor input: Red +4 volt, White output, and Shield ground
