Miller dynasty 350 tig welder w/tig torch 951074
MILLER DYNASTY 350 TIG WELDER w/TIG TORCH 951074
BRAND NEW MILLER DYNASTY 350 TIG WELDER RUNNER PACKAGE , WITH tig TORCH 951074

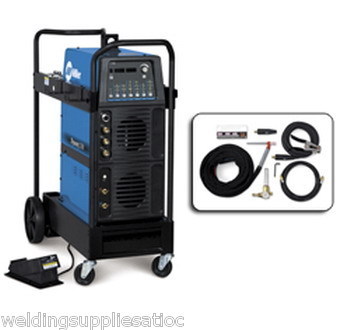

Dynasty 350 TIGRunner with Torch Complete
* Regulator/Flow meter, Smith HM2051A-580
CLICK HERE FOR full spec sheets http:// /pdf/spec_sheets/AD5-0.pdf
Latest technology - this powerful, compact AC/DC inverter delivers superior arc performance with total AC arc shaping capabilities. Auto-Line technology allows connection to any voltage or frequency in the world while using half the power of a conventional welding machine.
* Anodized Aluminum Fabrication
* 208-575 V, 3- or 1-Phase Power
* 3-Phase: 300 A at 32 V, 60% Duty Cycle
Single-Phase: 225 A at 29 V, 60% Duty Cycle
* 268.5 lb (122 kg), with TIGRunner
Dynasty 350 TIG welder with TIGRunner package Dynasty 350 w/TIGRunner package 951062
* Independent Amplitude/Amperage Control
* AC Waveforms Control: Advance Squarewave, Soft Squarewave, Sine Wave, and Triangular Wave
* Exceptionally smooth and precise arc
* High-Speed DC TIG Pulse Controls
Auto-Line - Allows for any input voltage hook-up (208-575 V) with no manual linking, providing convenience in any job setting.
HF arc starting provides non-contact arc starting that eliminates tungsten or material contamination.
Superior Arc Performance- Smooth running 7018 or stiffer, more penetrating 6010.
120 V auxiliary power receptacle for cooling system or small tools.
Programmable start parameters allow independent starting conditions based on process and memory selections (amperage, time, and polarity.
Extended Balance Control range (30-90% EN) allows precise cleaning control and prolonged tungsten life.
Program memory features 9 independent program memories that maintain/save your parameters.
Auto-Postflow calculates the length of postflow time based on the amperage setting. This eliminates the need to independently set the postflow time for different amperages. This feature preserves your tungsten and prevents porisity.
TIGRunner packages feature a 3.5 gallon cooling system. The cart is equipped with cylinder-carrying capabilities, filler rod holder, foot pedal holder, torch, and cable holders. A pullout drawer provides additional storage for torch consumables and tools.
25 foot 300 amp weldcraft tig torch and accessory kit.
