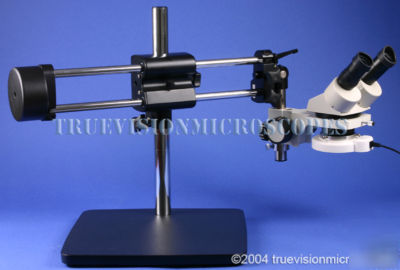

Dual arm boom 5X-10X-15X-30X stereo binoc microscope
Heavy double arm microscope stand for sturdy mounting of stereoscopic microscope head.
All images taken using this microscope and included camera.
Click to enlarge image! Image Thru Trinocular Port
Click to enlarge image! 10x Magnification
DUAL ARM BOOM STAND MOUNTED MICROSCOPE W/ PC USB COMPUTER CAMERA
* Stereo Binocular Microscope Mounted on Boom Stand!
* Ideal for doing Circuit Board Work, Soldering, Examination of large specimens, and Engraving. Great for any job doing tiny intricate work. Also fine for simple inspection.
* Great Quality Imaging at a Super Low Price!
* Extra Sturdy Boom Stand for Maximum Versatility and Working Area!
* The Dual Arm with Counterweight on this Boom Stand gives Better Stability than a Normal Stand.
* Multi-Axis Rotation: This Boom Stand can rotate the scope head on any angle to view hard to see places. This is something that few booms can do. For example, if checking solder connections on a circuit board, this head can be rotated for better inspection.
* Fixed Magnification: 5x, 10x, 15x, 30x! (5x/15x w/ Included Bottom Lens on, 10x/30x w/o Bottom Lens on).
* Eyepiece Set Included: 30mm Wide Field 10x.
* Bottom Lens Included: 0.5x. When present, this will approximately double the working distance as the scope head is elevated farther from the specimen when in focus.
* Includes Fluorescent Ring Light for Bright and Even Illumination.
* Spare ring fluorescent bulb is included.
Head - Interpupillary Distance - Diopter
* 45 Degree Inclined Binocular Head, Rotatable 360 Degrees.
* Adjusts to the Distance Between your Eyes: 50 to 70mm InterPupillary Distance.
* Diopter Adjustment to Correct for Your Specific Vision Needs.
* Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
* Rack and Pinion Steel Gears for Focus Movement.
* Nice Working Distance to Allow Room for Your Tools. (Distance from Bottom of Lens on Head to Top of Object in Focus) 105mm - w/o Bottom Lens on, (225mm w/ Bottom Lens on).
* Heavy Solidly Built Boom Stand.
* Solid Steel Boom Stand Base Plate.
* Includes Rubber Eye Guards for Blocking Stray Light.
* 110 VAC Power Requirement (Contact us about 220V availability).
* High Quality Solid Construction!
* Precision Made Glass Optics!
