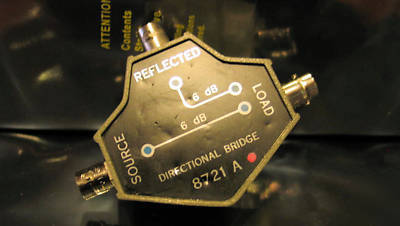

Agilent hp 8721A directional bridge 100 khz to 100 mhz
The Agilent 8721A is used in return-loss measurements made with a swept source such as a tracking generator and spectrum analyzer. This 50 ohm bridge (75 ohm optional) has a 6 dB insertion loss and 6 dB coupled to the auxiliary arm.
* Directivity: Greater than 40 dB, (1 to 110 MHz)
* Load-Port Return Loss: Greater than 30 dB
* Maximum Input Power: +20 dBm
* Frequency response: Plus/Minus 0.5 dB
