Toshiba vacuum contactor ydct motor starter 600 hp 460V
600HP Wye-Delta Soft Motor Starter

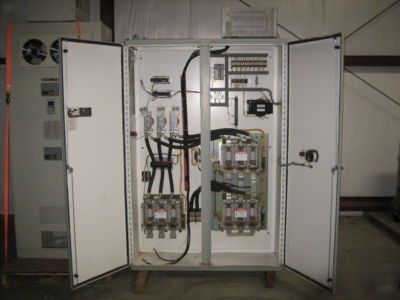

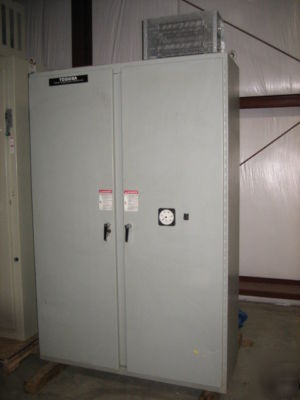

This complete / ready to go Toshiba 460 Volt Motor Starter Cabinet is in Excellent Condition both Externally and Internally. The 3x CV1BJU Vacuum Contactors are in set-up for Wye-Delta Starting. Motor winding is switched by 3x CV1BJU Vacuum Contactors from a wye connection during starting to a delta connection during running.
Max. Voltage: 460 Control Voltage: 120
Wiring Diagram: L9AA0F01 05/98
Off From 3x Vacuum Contactors:
V 208 230 380 460 575 762/796 1500
HP 200 250 300 500 (***) 800 1600
Discharge Lighting 600A. 1500V Max.
Short Circuit Rating (RMS. SYM.)
42kA, 1500V Max. (with Gould A150P800 Fuses)
Control Voltage 100-240V AC/DC
