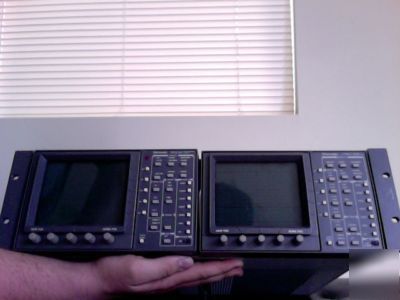

Tektronix wfm 601I and 1750A
The WFM601i extends the capabilities of the WFM601A to provide a more comprehensive evaluation of the transport layer carrying the digital signal. The WFM601i is designed for digital installation, maintenance and transmission applications. The eye pattern display of the WFM601i allows observation of such analog characteristics of the serial data stream as signal path amplitude, response and timing distortions. The eye pattern display also allows observation of any mismatch reflections. The WFM601i's suite of format checks provides confidence that checked parameters meet industry requirements.
The 1740A/1750A/1760 Series make up a family of analog video waveform/vector monitors with progressive features in support of today's demanding television environment. Each model in the series provides improved video performance and ease of operation and incorporates application specific features. The family includes the 1740A Series composite analog waveform/vector monitors, the 1750A Series, which adds SCH and color frame verification capabilities, and the 1760 Series for mixed format component/composite applications. (While the 1740A and 1750A do provide basic component waveform monitoring capabilities with parade and overlay displays, only the 1760 provides full component monitoring capabilities.) The family features a common, straightforward operator interface, allowing the operator to take immediate advantage of the instrument's extensive feature set. Each operating mode provides a full set of operating controls, clearly labeled and within easy reach. Key controls are always available, with bezel buttons and knobs identified by intuitive on-screen labels.
