Sony / tektronix 370A programmable curve tracer nice

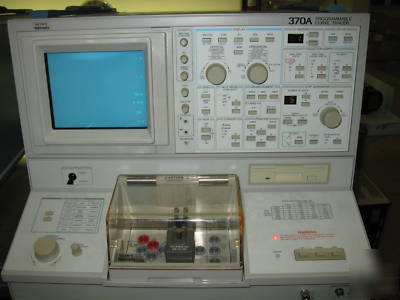

Sony / Tektronix 370A Programmable Curve Tracer
Complete with Built-in Test Fixture Unit

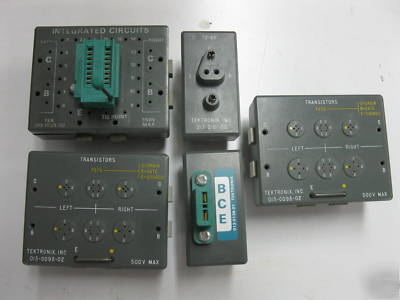

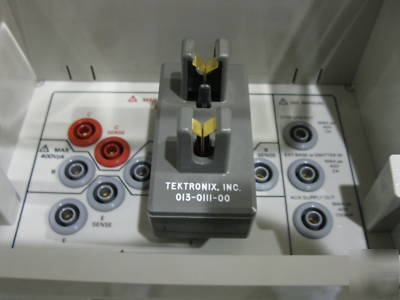

The Test Fixture comes with (x1) Diode - 13-0111-00, (x1) TO-66 - 013-0101-00,
(x1) BCE - 013-0138-01 (x2) Transistors - 013-0098-02,
(x1) Integrated Circuits - 013-0124-00
This unit is used but it is in Excellent Condition and works Greatit appears to have had very little use

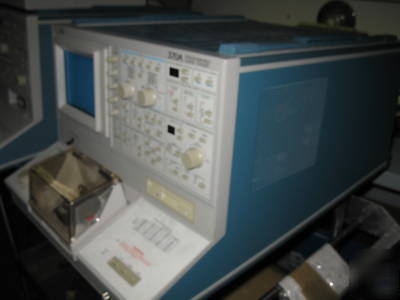

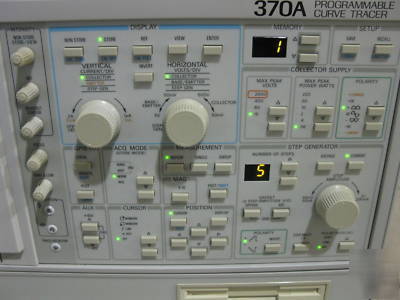

The Sony / Tektronix 370A Programmable Curve Tracer

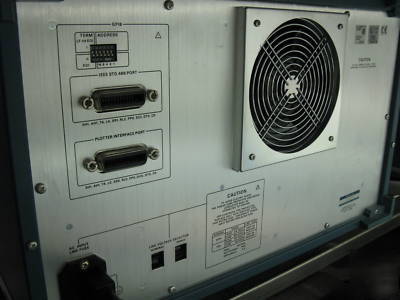

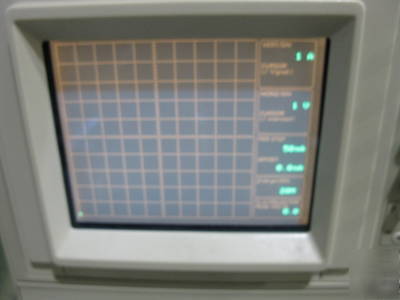

Tests 2, 3, and 4 terminal semiconductors up to 220 W and 2,000 V. Digital storage with on-screen readout. Automatic test sequencing without a computer. GPIB programmable.

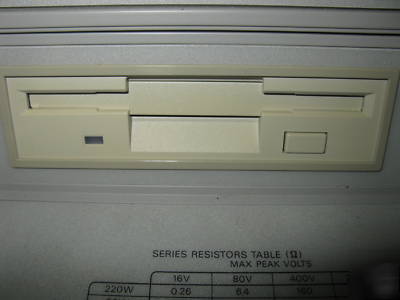

This version comes with a built-in floppy drive. High Precision Measurements of Semiconductor Devices:*Up to 2000 Volts or 10 Amp Sourcing *Up to 220 Watts *1 Nanoamp Measurement Resolution *Down to 2 Millivolt Measurement Resolution *Waveform Comparison *Envelope Display *Waveform Averaging *Dot Cursor *Kelvin Sense Measurements *Fully Programmable *3.5 Inch MS DOS Compatible Disk Storage to Save and Recall Setup
370A - High-Resolution Programmable Curve Tracer
* Polarity Modes : AC, DC, Leakage, Rectified Sine.
* Range : 16 V, 80 V, 400 V, 2000 V.
* Max Peak Current : 10 A, 2 A, 0.4 A, 0.05 A.
* Peak Current Pulsed : 20 A, 4 A, 0.8 A, 0.1 A .

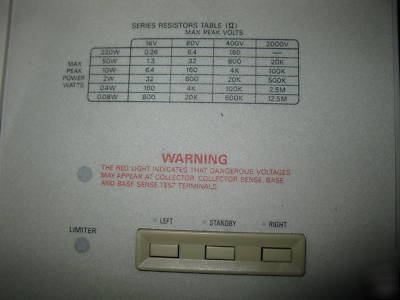

* Minimum Series Resistance : 0.26 ohm, 6.4 ohm, 160 ohm, 20 kohm.
* Maximum Series Resistance : 800 ohm, 20kohm, 500kohm, 12.5Mohm.
* Peak Power Wattage : 0.08W, 0.4W, 2W, 10W, 50W, 220W.
* Offset Control Range : Variable from :10 to+10 X STEP AMPLITUDE, with 0.1% resolution.
* Short Circuit Current Limiting : 500 mA.
* Amplitude range: 50 nA to 200 mA in 1-2-5 sequence in 21 steps.
* Maximum current: 20X STEP AMPLITUDE, except for 2 A with switch set to 200 mA.
* Maximum voltage: At least 10 V.
* Maximum opposing offset current: 10X STEP AMPLITUDE.
* Maximum opposing volts: Less than 7 V.
* Ripple plus noise: Less than 0.5% X STEP AMPLITUDE + 1 nA.
* Amplitude switch range: 50 mV to 2 V, in 1-2-5 sequence.
* Maximum voltage: 20 X STEP AMPLITUDE.
* Max current: At least 500 mA at 10 V or less, or 10 mA at 40 V.
* ##Accuracy (current or voltage steps including
* Absolute: Less than 2% X total output +3% X AMPLITUDE setting.
* Volts : 10X STEP AMPLITUDE.
* Maximum Opposing Current : Less than 20mA.
* Step Rates : 2X line frequency (1X line frequency in AC collector supply). Steps occur at 0 collector voltage.
* Pulsed Steps : 80 s or 300 s wide 10%.
* Steps and Offset Polarity : Same as collector supply polarity when STEP GENERATOR POLARITY INVERT is disabled. Opposite to collector supply polarity when STEP GENERATOR POLARITY INVERT is selected or CONFIGURATION is set to BASE GROUNDED, STEP GENERATOR POLARITY INVERT is disabled.
* Number of Steps : Selectable from 0 to 10.
* Nonstore Mode Collector Current Range : 1 A/div to 2A/div in 1-2-5 sequence of 20 steps. X10 MAG extends maximum sensitivity to 100 nA/div. Both unmagnified and magnified accuracy are within 3%
* Step Generator Display Range : 1 to 10 steps/division, or 1 step/10 divisions.Unmagnified and magnified accuracy are within 3%.
* Display Offset : Vertical offset of display centerline value up to 10 divisions in 21 half-division steps.
