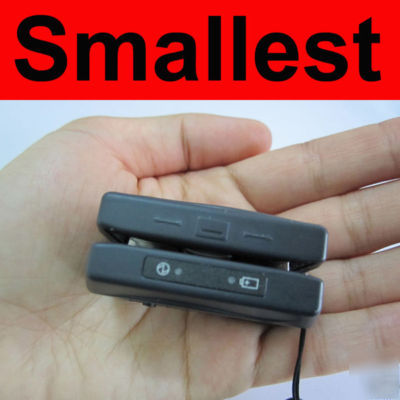

Portable magnetic card reader com MINI123EX MINI123 usb
with powerful built-in rechargable battery
MiniDX3, The World's Smallest Portable Magnetic Stripe Card Reader Collector
MiniDX3 is the latest model . Its functions are the same as Mini123EX. It is the smallest portable Data Collector in the world. It's a battery-powered portable magnetic swipe reader, which is specially designed for magnetic stripe data collection anytime and anywhere without computer.
Any movable data collection (Trade shows, Racing events)
512 K bytes memory for storing more than 2,000 records of data
3-track version can collect all three tracks data, 300-4000 oe
Password Protection defends user
Transfer data to MSR206 and MSR606 directly
Data downloadable to the computer via USB
Battery powered and low battery indicated
Read ISO format and special format are available upon request
No programming required, easy to use as 1- 2- 3
Dimensions: L 1.9 x W 0.9 x H 1.2 inch ( L 5.0 x W 2.3 x H 3.2 cm )
Battery Power: 3.7v 220 mAH Rechargeable Battery
Read card: Track1 Track2 Track3
Bit per density: 210 bpi 75/210bpi 210 bpi
Coercive force: Read 300-4000 oe Mag.card
Read Speed: Card speed through the unit may vary from 3 ~50 ips
Error rate: Read < 0.5% Write < 0.8%
Head life Min. 1000K swipes for both read/write head
Date: YY/MM/DD ( 2007/03/15 => Mar. 15, 2007 )
Time: HH:MM:SS (19:08:35 => 7:08:35pm)
Week: Sun.=>1, Mon.=>2, Tue.=>3 Wed.=>4, Thurs.=>5, Fri.=>6, Sat.=>7
Example: 2002/04/12 19:08:35 6 => April 12, 2002, 7:08:35pm, Friday
Click to see the files: MiniDX3 User's Manual Demo Software User's Manual
