40 ton ph hyd & auto inc 4-post hyd trim press #23388

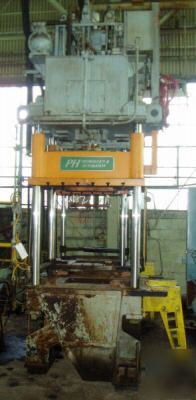

40 TON PH HYDRAULICS & AUTOMATION INC 4-POST
New 1987, Serial No. 60063, Model 4C40T
GE/Fanuc "Series I" Programmable Controller
Standard Tool & Die Transfer Table
Stroke Length, Adjustable.............. 0 to 40"
Daylight, Maximum...................... 40"
Posts, Diameter........................ 3.5"
Bed Area, L-R x F-B.................... 47.5" x 37.625"
Distance Between Posts, L-R x F-B...... 37" x 27"
Bed Opening, L-R x F-B................. 20" x 13.875"
Main Cylinder Diameter................. 7.5"
Main Cylinder Rod Diameter............. 5"
Operating Pressure Maximum............. 2078 PSI
Hydraulic Reservoir Capacity........... 120 GALLONS
Hydraulic Motor, Horsepower/RPM........ 25 HP/1180 RPM
Electrical System...................... 480/3/60
Condition As Taken From Service.
