Full-digtal b mode veterinary ultrasound scanner KX5200

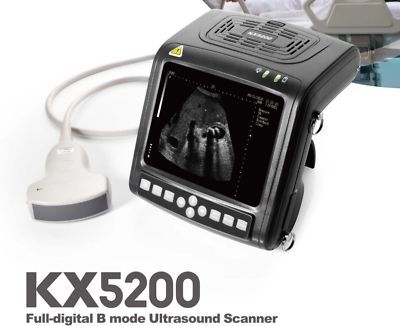

Full-digtal B mode Veterinary Ultrasound Scanner KX5200
5.7" high resolution TFT LCD:brightness,contrast and background light can be adjusted.
1 sockets for proobe video interface.
Battery:Two unit high capacity lithium battery,for more than 200 minutes work.
Normal measurement: distance,circunmference,area(trochoid or ellipse),volume,angle,Stenosis(length,area),etc.
Obstetric measurement and analysis:BPD,CRL,GS,FL,HL,TAD,TBD,APBD,HC,AC,GA,EFW,FT,LV THD,TCD,OFD,AFI,LMP,fetus growth curve(single frame,four frames),OB report.
Cardio measurement and analysis:M routine measurement software packeage(depth,slope,heart rate,cycle),cardio measurement software package(left ventricle function,mitral valve,aorta,ejection period,cardiac muscle weight,cardio report,ect)
Gyn.measurement and analysis:uterus volume,endometrium thickness,ovary volume,superior ovarian follicle,uterine neck long dia, GYN report,ect.
Urological measurement and analysis:residual urine,volume of prostate,Urological report
Statistics function:column diagram,sectional view
Application for multi-corollary equipments
Puncture guide line(2 puncture guide lines can be adjusted on angle and position)
Lithotriptor can be connected with rock position line.
Tumor treatment equipment,Abortion attract machine,ect.can be connected by the other obligated interface.
Efficient data management system
*Measurement data can be recorded automatically into report system quickly and easily
*Thermal printer and appointed laser printer can be connected for peint rapidly
*USB-A socket for flash disk to store images directly(it can store both patient image and relative report.Support files management,disk management and software update)
*USB-B socket for transferring of image to PC (optional software of case report process center)
*Standard:main unit,3.5MHZ multi-frequency convex probe and 1 pc lithium battery
*Optional:3.5MHz multi-frequency convex probe;7.5MHz high frequency liner probe(multi-frequency);6.5MHz trans-vaginal probe(multi-frequency);5.0MHz micro-convex probe(multi-frequency);barrtery charger;trolley
