Nsk nakanishi nc cnc lathe brushless motor EM25-5000-J4
Nsk Nakanishi NC CNC Lathe Brushless Motor EM25-5000-J4
BRUSHLESS MOTOR EM25-5000-J4 (Cord with Quick Disconnect)
High-performance system and state of the art design allows high-speed machining and a variety of safety functions.
-EM25-5000-J4 Brushless Motor(Cord with Quick Disconnect); Cord with Quick Disconnect Air Coolant Hose Reducer Wrench (22 x 27) : 1 pc.

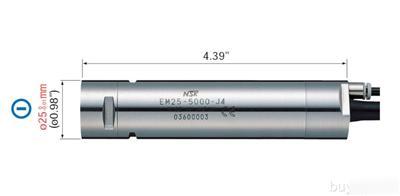

EM25-5000-J4 Brushless Motor Specifications
Motor Speed: 5,000~50,000 min-1(rpm) *500 min-1(rpm): for centering
Outside Diameter: 0.98" ( 25 mm)
Housing: Stainless steel (SUS416)
Air Coolant Hose: Length 13 ft
*Maximum Speed (rpm) with the NE236 Control Unit 30,000 min-1(rpm) with Air & 25,000 min-1(rpm) without Air.
Motor is a brushless DC motor utilizing hall elements and rare-earth magnet in the rotor. The Motor develops 125W.
The brushless DC Motor designs allows for excellent reliability and durability. The EM25-5000-J4 can be steplessly controlled up to 30,000 min-1(rpm).
Air-Cooling system provides Excellent Durability
Air-cooled motor uses a small volume of air (1.2CFM) to prevent heat buildup and allow long continuous operation. Regulate the cooling air supply between 21-35PSI.
Clean dry air is required to cool the motor and protect the spindle from contaminants. Use a filter and regulator. (Proper air pressure 21~35PSI) (Use Air Line Kit AL-0201)
