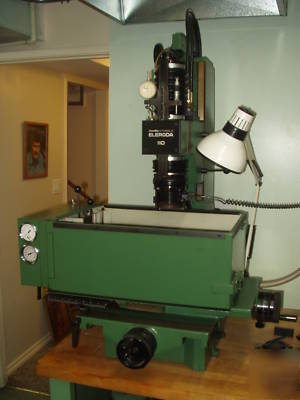

New charmilles e-110 ram type sinker edm bench top $30K
This is the ultimate progression of Charmilles bench Top EDM's.
If you are looking for a machine like this, you will never find one in any better shape.

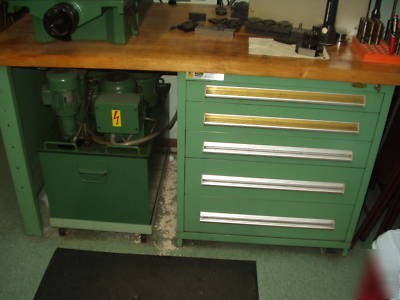

Includes Butcher Block table and super heavy duty drawer cabinet.
All original as it came from Charmilles.
Used by local mold maker in his private home shop.
Very little use, one man shop 5 days a week.
The nicest one of these in America.
Includes System 3R Chuck and 20 mm holders.
All accessories that came with this machine are included.
WORKHEAD BACKSLIDE TRAVEL: 9.5"
MAXIMUM ELECTRODE WEIGHT: 66 LBS.
LONGITUDINAL TABLE TRAVEL: 7.9"
TRANSVERSAL TABLE TRAVEL: 4.7"
INSIDE DIMENSIONS OF WORK TANK: 20.5" X 13.8"
RESERVOIR CAPACITY: 18 GALLONS
MAX. MACHINING CURRENT OF GENERATOR: 25 AMPS
ELECTRO-HYDRAULIC SERVO MECHANISM FOR WORKHEAD
HANDWHEELS FOR TABLE TRAVEL GRADUATED TO .001"
TABLE WITH STORAGE DRAWERS, 60" L-R X 30" F-B X 35" HIGH
1/4 HP 3/60/220/440 VOLT DIELECTRIC PUMP MOTOR
MACHINE IS WIRED FOR 3/60/220 VOLT OPERATION
APPROXIMATE WEIGHT (WITHOUT TABLE): 925 LBS.
APPROXIMATE DIMENSIONS (W/TABLE): 63" L-R X 38" F-B X 80" H
This machine includes a standard MDNA style return policy.
This machine does not include a warranty.
Thank you for your interest in our equipment.
Questions call John (***)-702-9878
