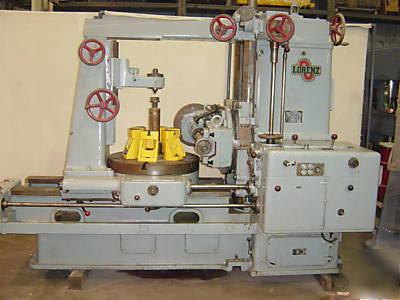

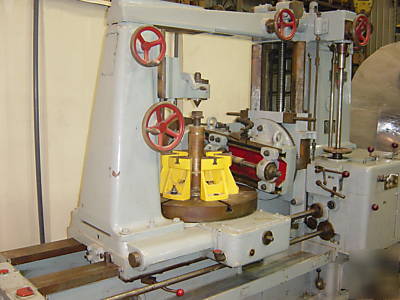

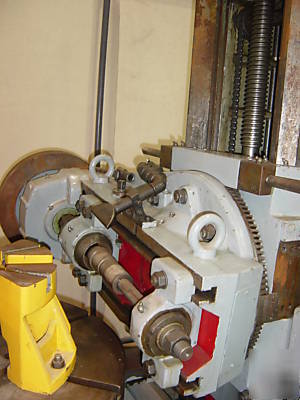

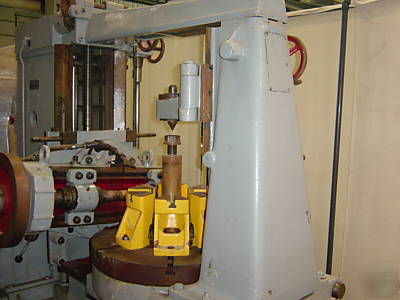

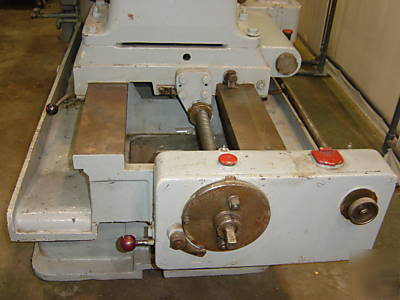

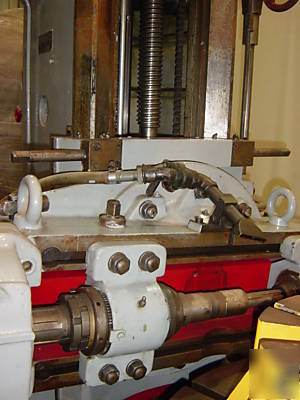

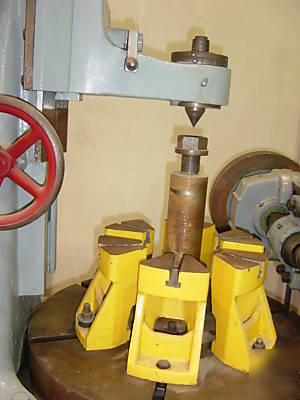

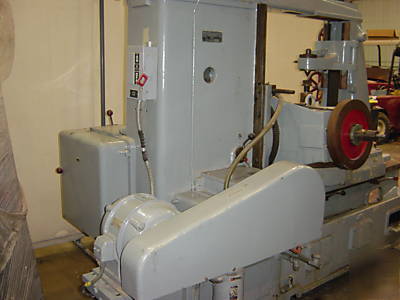

> Lorenz gear hobbing machine max gear cutting dia 471/4
Lorenz gear hobbing machine max gear cutting dia 471/4
Maximum D. P./module hobbed 2 D.P.
Maximum diameter of gear cut without arbor support 47.25
Maximum diameter of gear cut with work arbor support 27.5
Maximum distance between centers (A) 27.5
Maximum distance between centers (a) 2.56
Maximum distance between center line of hob and table (B) 24.53
Maximum distance between center line of hob and table (b) 2.362
Maximum distance between work arbor support bracket and table (C) 25.39
Maximum distance between work arbor support bracket and table (c) 15.55
Swung out position of work arbor support bracket in relation to table (D) 29.13
Bore in work arbor support bracket (K) 3.15
Maximum diameter of hob (F) 7.09
Hob speeds: number 18. Range per minute 23/170
Feeds per revolution of table: number 12.
Vertical range (inch/rev) .011/.15
Horizontal range (inch/rev) .002/.04
Maximum length of component admitted in worktable bore measured from top of table
Approximate power required in KW 10/13.5 HP
Approximate net weight of machine with accessories 17000 lbs
Index and differential change gears
2 ea. Work arbor 1 3/8 and 3
4 ea. Hob arbors 7/8 , 1 1/16 , 1 and 1 diameter
Electrical requirements 240 volts 3 phase
