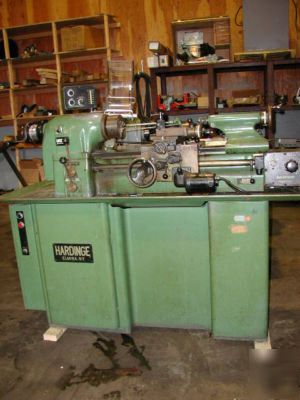

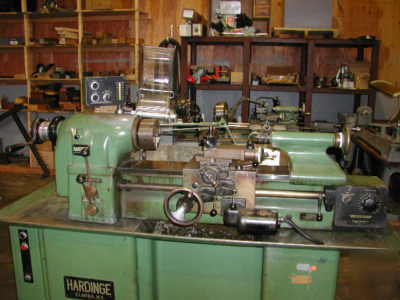

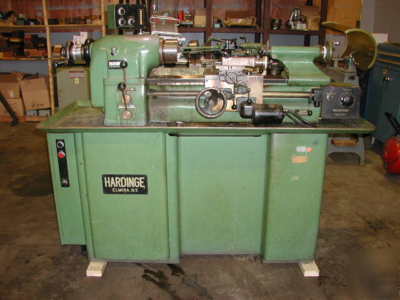

Hardinge tfb toolroom lathe hlvh
HARDINGE PRECISION TOOROOM LATHE, MODEL # TFB (TURNING, FACING & BORING); SAME AS MODEL # HLV-H WITHOUT THREADING; IN EXCELLENT CONDITION FROM PROTOTYPE FACILITY (ONE OWNER MACHINE); RUNS WELL AND IS NICELY EQUIPPED; CALL MARC @ (***) 390-0006 TO INSPECT UNDER POWER IN EDISON, NJ; WE CAN LOAD AT NO CHARGE AND CAN ASSIST YOU FINDING COMPETETIVE TRUCKING RATES
TECHNICAL SPECIFICATIONS: * S/N: HLVH-H-4772
* Operating voltage: 440 , 3 Phase, 60 Cycle
* Swing over cross slide: 6"
* Distance between centers: 18"
* Carriage power feed: 5/16" - 7" per minute
* Spindle capacity: 1-1/16" round 5C
* Hole through spindle: 31mm
* Speeds: 125 - 3000 RPM (variable)
* Estimated weight: 2150 lbs.
EQUIPPED WITH: * Assorted 5C collets
