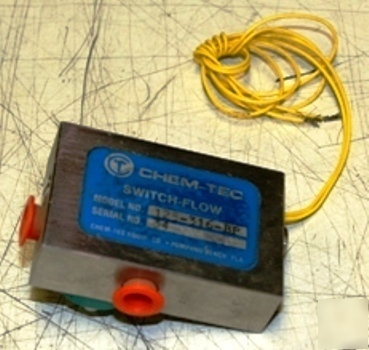

Chemtec 125-316-bp 125 adjustable flow monitor / switch
ChemTec CTE 125-316-BP 125 BP Series Adjustable Flow Monitor / Switch
$292.00 each (3 day lead time) (OEM 04/08/09 MQF)
* Best for applications where Ration (Normal Flow/Set Point) is 10:1 or less
* Broad range of adjustability
* Close on-off differential
* Monitors gases or liquids
* Materials: 316ss, Brass, Teflon
* Confirms: Normal flow conditions
* Senses: High flow or low flow conditions
When no flow is present the free magnetic piston rests on the bottom of the bore, which is situated in a bypass off the main line. Adjustment of the variable orifice in the main line creates a small bypass flow sufficient to lift the magnetic piston and actuate the reed switch. When flow decreases, the piston moves downward and the reed switch deactuates.
* Temperature Operating Range: 0 ro 220F (-17 to 104C)
* Calibration Points: Air (SCC/M(SCFH)): 100(0.21) Min / 20,000(42.4) Max; Water (ML/M(GPH)): 3(0.048) Min / 500(7.93) Max; Ports: 1/8 FNPT
* Max Working Pressure PSIG(barg): 3000(206.84)
* Wetted Parts: 316ss, Epoxy
