Carr lane 3/4X1.5 ball lock quick release alignment pin
Carr Lane x 1-1/2 oal Precision Alignment Ball Lock Quick Release Pins-New in original factory packages
Manufacturer: Carr Lane Manufacturing Co., St. Louis, MO
Part Number: CL-12-BLPT-1.500

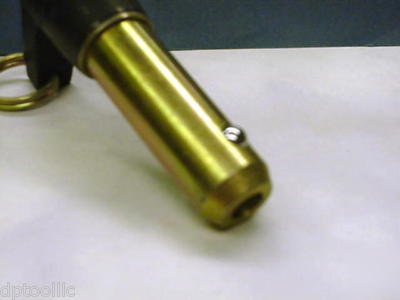

Shank Diameter: ground shank, cadmium or zinc plated
Actual Shank Diameter: .7485/.7470
Shank Material: 4130 steel, heat treated RC 36-40
Shank Coating: Zinc or cadmium plated
Shank Grip Tolerance: +.020 - 0.00
Shank Tensile Strength: 160,000 psi min

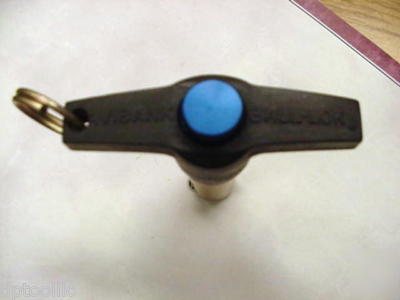

Handle Style: T style made of Aluminum alloy w/black finish
Push Button: Made of Aluminum alloy w/black finish
Collar: Carbon steel-cadmium plated, or 300-series SS
Spring and ring: Made of 17-7PH, 302 SS, or music wire
Ball Lock Pins: 2 ball locks made of 440C stainless
Strength Data: 2970lb pull out strength
Factory Selling Price: $24.85
This popular single-acting type precision alignment pin is positive locking until released by pushing the button, which moves the center spindle forward to allow the locking balls to retract into a radial groove.
