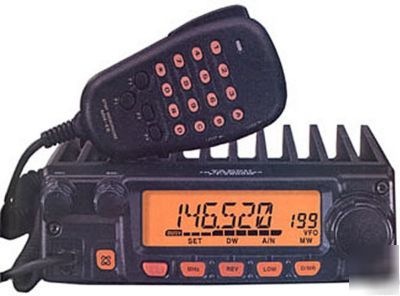

Yaesu ft-2800M (FT2800M, ft 2800M) vhf fm transceiver
Transmit Time-Out Timer (TOT)
Frequency Ranges: TX: 144 - 146 or 144 - 148 MHz
RX: 144 - 146 or 137 - 174 MHz
Channel Step: 5/10/12.5/15/20/25/50/100 kHz
Standard Repeater Shift: 600 kHz
Frequency Stability: Better than 10 ppm [ 4 F to 140 F ( 20 C to +60 C)]
Antenna Impedance: 50 Ohms, unbalanced
Supply Voltage: 13.8 V DC 15 %, negative ground
Current Consumption: RX: less than 0.7 A, less than 0.3 A (squelched)
TX: 10 A(65W)/ 7A(25W)/ 5A(10W)/4A(5W)
Operating Temperature Range: 4 F to +140 F ( 20 C to +60 C)
Case Size(WxHxD): 6.3" x 2.0" x 7.3" (160 x 50 x185 mm) (w/o knobs)
Output Power: 65 W / 25W / 10W / 5W
Modulation Type: Variable Reactance
Maximum Deviation: 5 kHz / 2.5 kHz
Spurious Radiation: Better than 60 dB
Microphone Impedance: 2 kOhms
Circuit Type: Double Conversion Superheterodyne
Sensitivity (for 12 dB SINAD): Better than 0.2 V
Selectivity( 6/ 60 dB): 12 kHz / 28 kHz
IF Rejection: Better than 70 dB
Image Rejection: Better than 70 dB
Maximum AF Output: 3 W into 4 Ohms @10 % THD
Supplied accessories: Microphone MH-48A6J, Base Station Feet
Mobile Mounting Bracket MMB-83, DC cable
* MMB-83 Mobile mounting bracket
* FP-1030A Linear power supply 13.8 VDC at 30 amps. 208.29 EUR / 189.33 GBP
* MH-48A6J DTMF Hand Microphone. 29.8 EUR / 27.1 GBP
* MLS-100 High power external speaker with cable, plug and mounting bracket. 41.00 EUR / 37.00 GBP
AV-825M Power supply 78.63 EUR / 71.48 GBP
