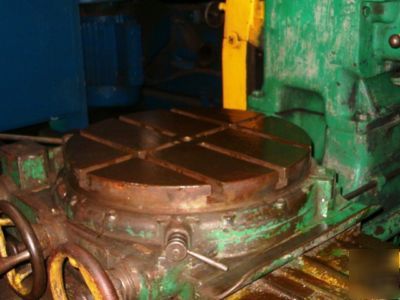

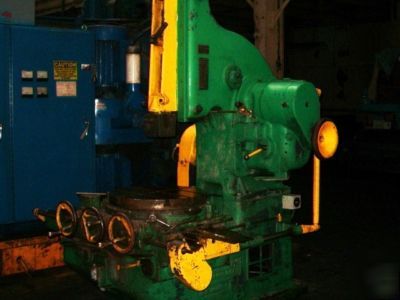

Pratt & whitney 12" vertical shaper/slotter
PRATT & WHITNEY 12" VERTICAL SHAPER/SLOTTER
TABLE TOP TO END OF RAM 28 1/4"
TABLE TOP TO LOWER END OF RAM BEARING - 17"
VERTICAL ADJUSTMENT OF RAM 17"
COLUMN FACE TO TOOL POST SEAT 21 7/8"
LONGITUDINAL TRAVEL OF TABLE 25" MAX.
TRANSVERSE TRAVEL OF TABLE 25" MAX.
ANGULAR ADJUSTMENT OF RAM 0 - 5 DEGREES
CUTTING SPEEDS (4) - 19, 31. 48, 76 SPM
LONGITUDINAL AND TRANSVERSE TABLE FEEDS (4)- .O33" - .0833"
ROTARY POWER FEEDS AT (10"RADIUS) - .0043" - .1745"
MOTOR 5 HP 220/440/3/60 ELECTRICS
