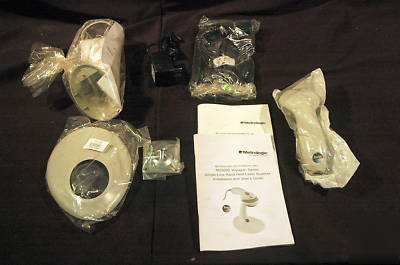

Metrologic MS9520 voyager bar code scanner MK9520-77B41
Ahead of its time. Perhaps the best automatic trigger scanner available today.
With a futuristic design and high-performance scanning technology the MS 9520 Voyager is clearly the most advanced auto-triggered scanner on the market today. Enabled for both In-stand and Out-of-stand operation Voyager can be used as a handheld and fixed presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n' Pieces data editing utility and an Electronic Article Surveillance (EAS) option. The MS 9520 Voyager Voyager is perfect for many applications including point-of-sale inventory control and commercial-warehouse applications. With its aggressive performance and comfortable design Voyager is far and away the most advanced scanner on the market today.
Light Source Visible Laser Diode 650 nm + 10 nm
Depth of Scan Field = 0 mm - 203 mm (0 - 8 ) for 0.33 mm (13 mil) bar code programmable
Width of Scan Field = 64 mm (2.5 ) @ face; 249 mm (9.8 ) @ 203 mm (8.0 )
Scan Speed = 72 + 2 scan lines per second
Minimum Bar Width = 0.127 mm (5.0 mil)
Decode Capability Autodiscriminates all standard bar codes;
for other symbologies call Metrologic
System Interfaces PC Keyboard Wedge, RS232, OCIA, Light Pen Emulation, IBM 468X/469X,
Print Contrast 35% minimum reflectance difference
Number Characters Read Up to 80 data characters
Roll, Pitch, Yaw 42 , 68 , 52
Beeper Operation 7 tones or no beep
Indicators (LED) Green = laser on, ready to scan
Termination 10 pin modular RJ45
Cable Standard 2.7 m (9 ) coiled; optional 2.1 m (7 ) straight;
Current - Operating 115 mA typical @ 5 VDC
Current - Standby 45 mA typical @ 5 VDC
DC Transformers Class 2; 5.2 VDC @ 650 mA
Laser Class CDRH: Class II; EN60825-1:1994/A11:1996 Class 1
EMC FCC, ICES-003 & EN55022 Class B
Operating Temperature 0 C to 40 C (32 F to 104 F)
Storage Temperature -40 C to 60 C (-40 F to 140 F)
Humidity 5% to 95% relative humidity, n o n - c o n d e n s i n g
Light Levels Up to 4842 Lux (450 footcandles)
Shock Designed to withstand 1.5 m (5 ) drops
Contaminants Sealed to resist airborne particulate contaminants
