MC5 relay adapter for MC433/MC433G stepper controller

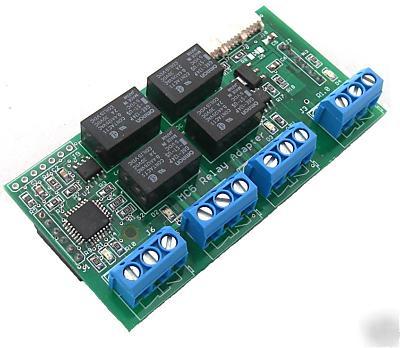

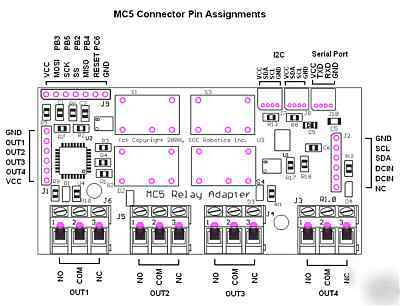

The MC5 is a 4 Channel Relay daughtercard that attaches to the MC433 or MC433G. The MC5 has four DC relays that can control up to 24V 2A DC loads. The MC5 follows the state of the Auxiliary IO lines which are connected via the MC433's DB25 connector to the PCs parallel port. LEDs on the board indicate if each Relay is active.
For detailed technical information download the MC5 Technical Reference Manual(.pdf): MC5 Technical Reference Manual
* Up to 24V and 2A per relay
* On board processor (ATmega168)
* I2C communications connection installed

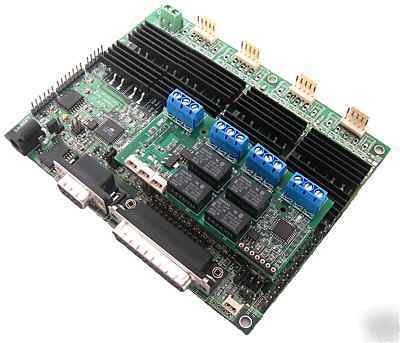

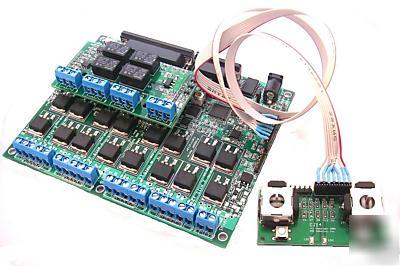

* Attaches to MC433 or MC433G
* Optional I2C slave software for multiple MC5 control
