Hp 8753B/85047A 6 ghz network analyzer w/opt 6 &10 wcal

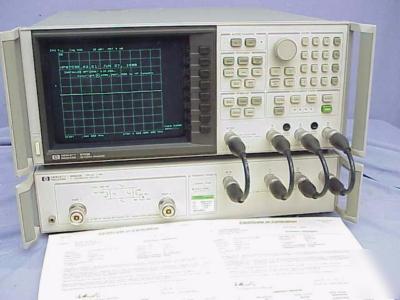

This sale is for a very nice Lightly Used HP/Agilent 8753B Network Analyzer with options 006 & 010, matched
with the HP Agilent 85047A S-Parameter test set. Package includes front and rear interconnect cables.
System was just calibrated by an ISO9001 Cal Lab and includes certs. CRT is Bright and Sharp.
This is a really nice system with the 2 most sought after options for this model.
Sold with a 7 Day Right of Inspection
The Agilent 8753B provides excellent RF network measurements for the lab and production test areas. The integrated
synthesized source provides 100 mW of output power, 1 Hz frequency resolution, and linear, log, list, power, and CW
sweep types. Three tuned, 300 kHz to 3 GHz receivers allow versatile independent power measurements or simultaneous
ratio measurements over a 100 dB dynamic range. The instrument has a 0.0-5 dB dynamic accuracy over a 40 dB range.
It can also be used for swept harmonic measurements and time domain analysis.
* Integrated 1 Hz resolution Synthesized Source
* Direct save/recall to an external disc drive
* Execute Complex test procedures with the test sequence function
* Group Delay and deviation from linear phase
* 0.001 dB, 0.01 deg, 0.01 nanosec marker resolution
* Built-in accuracy enhancement
Option 006 = 6GHz Receiver Option
Option 010 = Time Domain Capability
CLICK HERE for 8753B Data Sheet
The Agilent 85047A Test Set provides the capability to measure transmission and reflection characteristics
(including S-parameters) of two-port devices in either direction with a single connection. The test set is controlled from the
analyzer and includes programmable step attenuators. It includes a frequency doubler that can be switched in to measure
3 MHz to 6 GHz in a single sweep or switched out to measure 300 kHz to 3 GHz in a single sweep.
The Agilent 8753B/C/D/E/ES network analyzers and selected 8702 lightwave component analyzer configurations control
the frequency doubler. (The 8753D/E/ES and selected 8702 configurations with built-in 6 GHz source do not use the frequency doubler.)
Option 006 (6 GHz receiver) is required to activate the 85047A.
* Frequency Range: 300 kHz - 6 GHz
* Measures reflection and transmission characteristics of two-port devices in either direction with a single connection.
* Full frequency range of 300 kHz to 6 GHz is available for 8753B/C/D/E/ES
CLICK HERE for 85047A Data Sheet
