1990 hardinge dv-59 first operation engine lathe

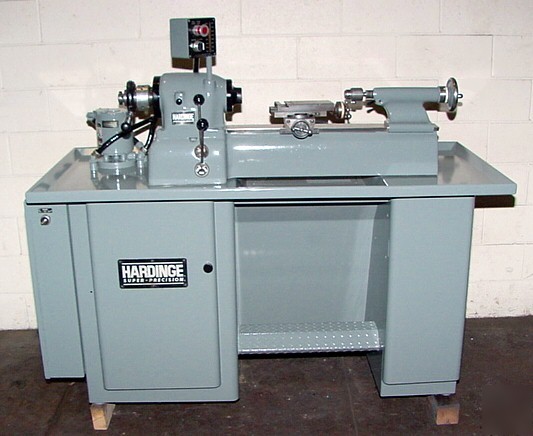

1990 HARDINGE DV-59 FIRST OPERATION ENGINE LATHE
MODEL: DV-59 S/N: DV-59-19023 NEW: 1990
SPINDLE CAP. w/ROUND 5C COLLETS ...... 1-1/16"
STEP CHUCKS ........... 1-1/16" TO 6"
JAW CHUCKS THROUGH SPINDLE 1-5/32"
SPINDLE TAPER ........................ HARDINGE
SWING OVER BED ....................... 9"
DISTANCE BETWEEN CENTERS ............. 17"
TRAVEL OF TOP SLIDE .................. 4-1/4"
TRAVEL OF BOTTOM SLIDE ............... 5"
TRAVEL OF TAILSTOCK SPINDLE .......... 3-1/2"
VARIABLE SPINDLE SPEED RANGE ......... 230 TO 3500 RPM
APPROX. WEIGHT ....................... 1,150 LBS.
-HARDINGE COMPOUND & TAILSTOCK
-PUSH BUTTON CONTROL FOR VARIABLE SPEED
-BALL BEARING LEVER TYPE 5C COLLET CLOSER
-ASSORTED 5C COLLETS (SEE PHOTOS)
-3/60/230 VOLT TWO-SPEED DRIVE MOTOR & ELECTRICAL CONTROLS
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE.
TOTALLY GONE THRU, RECONDITIONED AND TESTED IN OUR SHOP
