2005 nec electrical code calculator electricalc pro

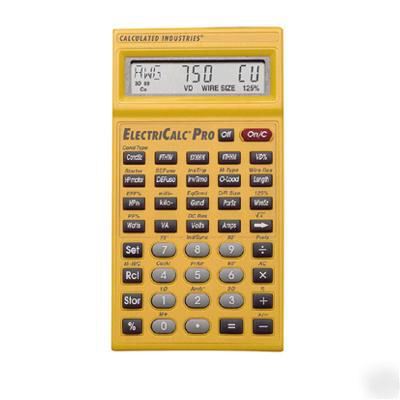

2005 NEC Electrical Code Calculator ElectriCalc Pro
Includes the New 2005 NEC chip!

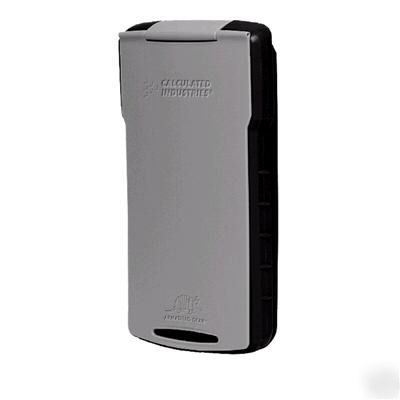

Includes a Free tough Armadillo Gear rubber protective case, a $19 Value! (See photo)
For Electrical Contractors, Designers, Electricians
Now Updateable for Future NEC Revisions!
Put Electrical Code answers at your fingertips! Carry the ElectriCalc Pro in your briefcase or tool belt, and solve hundreds of electrical design & estimation problems instantly & accurately!
Unlike a regular calculator, the ElectriCalc Pro has custom "electrical keys" with common National Electrical Code (NEC) tables built-in, allowing you to solve electrical/wiring problems quickly and accurately. It calculates wire sizes, voltage drop, conduit sizing and more!
Now has the 1999, 2002 and 2005 NEC built in.
The ElectriCalc Pro helps you:
* Solve Electrical Problems Instantly
* Carry NEC References with You
* Save Time, Improve Productivity
* Solve Electrical Math Problems Instantly
Solve for volts, amps, volt-amps, watts, kVA, kW, PF%, EFF%, and DC resistance.
* Copper or Aluminum Wire Sizes
Calculates wire sizes per NEC 310-16 & 310-17. Copper or aluminum, 30/10, 60 C, 75 C, 90 C insulation ratings at 100% or 125% of ampacity. Adjusts wire sizes for ambient temperatures other than 30 C and for more than three wires in a raceway.
* Parallel & Derated Wire Sizes
One-button parallel & derated wire sizing.
Lets you find: minimum voltage drop wire size, max. Length for any given wire size and drop percentage, actual number and percentage of volts dropped.
Calculates service and equipment grounding conductor sizes per NEC Tables 250-66 & 250-122.
* Find Motor Full-Load Amps per NEC
Works in 1 and 3 with the new expanded tables for 3 induction (to 500 HP) and synchronous (to 200 HP) motors per NEC 430-148 and 430-150.
* Computes Fuse & Breaker Sizes per NEC 430-152
Built-in solutions for: single and dual element fuses, instantaneous trip breakers and inverse time breakers.
* Sizes Overload Protection per NEC 430-32
* Automatically Finds NEMA Starter Sizes
* Conduit Sizing for 12 Types of Conduit!
Per NEC Tables 1, 3, 4, and 5 of Chapter 9, allows sizing of all common conduits for any combination of #THW, #XHHW and #THHN Wires. Plus, gives fill percentages, cross-sectional areas, remaining areas and more.
* Works as a Regular Calculator
5.5 x 3.0 x 0.5" (140 x 76 x 13 mm)
3-volt lithium (CR-2032) battery (included)
42 keys; soft-touch silicone rubber
LCD segment; 8 digits, with annunciator-legends
