Blue m thermal shock chamber wsp-109C-MP3 air-to-air

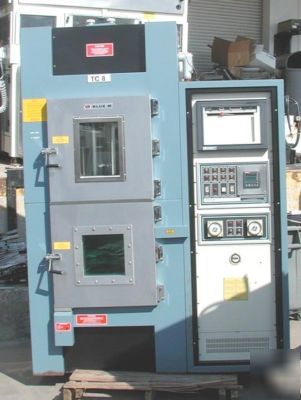

Blue M Thermal Shock Chamber WSP-109C-MP3 Air-to-Air Model
-75 Degrees C to +200 Degrees C (+392 Degrees F)
Voltage 60 HZ 1 Phase: 240V (Transformer re-wired for 208V on 1/12/2006)
Thermal Shock Chambers Air-To-Air Model.
Meets MIL-STD 202F, Method 107G
Meets MIL-STD 883, Method 1010.7
It s a fully Automated dry shock test system capable of taking your product from +200 degrees C to -75 degrees C and back in ten seconds or less. A moveable transfer chamber automatically transfers the workload from one temperature chamber to the other. The lower chamber uses LN2 to reduce workload temperature. A dry nitrogen feed system facilitates oxygen purging in the heat chamber, preventing condensation on the metal parts of the chilled workload. A defrost heater is included to periodically defrost the cold chamber during extended tests. The system includes solid-state over temperature/under temperature protection. The Pro-600 programmable control system for heating and cooling offers 200 program segments. Each chamber has it s own control. Time can be entered in any combination of seconds, minutes or hours. The system is non-volatile memory is capable of storing two complete sets or operating parameters, including programmer profiles. Meet MIL-STD 202F, Method 107G, Conditions A, B, C and F. MIL-STD 883 Method 1010.7, conditions A, B, C and F.
There will be a min. $250.00 packing fee for this item.
