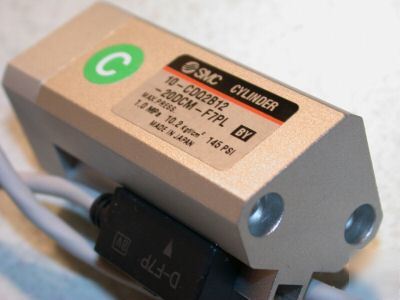

4 smc compact 2" bore air cylinder NCDQ2B12-20DCM
4 SMC COMPACT 2" BORE AIR CYLINDER NCDQ2B12-20DCM
The NCQ series cylinder offers a shorter, lighter and more compact package for a given stroke and is designed completely in inches with through-hole. The unique shape enables the use of rail-mounted switches without significantly increasing the overall length.
The short overall length, of this space saving cylinder helps to make various jigs and equipment more compact. Snap rings are used to secure the head cover, making replacement of seals possible.

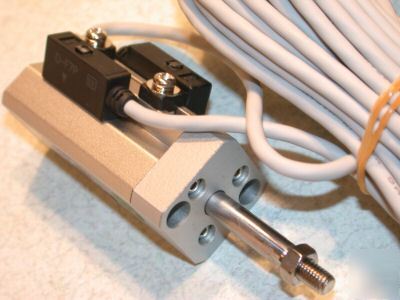

Includes auto switch and cable shown
Operating and pressure range to 150 psi
Force exerted(lbf) is .131 times air pressure - 20 lbf at 150psi
I will fully guarantee these new cylinders.
