Microtest MT350 network tester w/super injector *works*

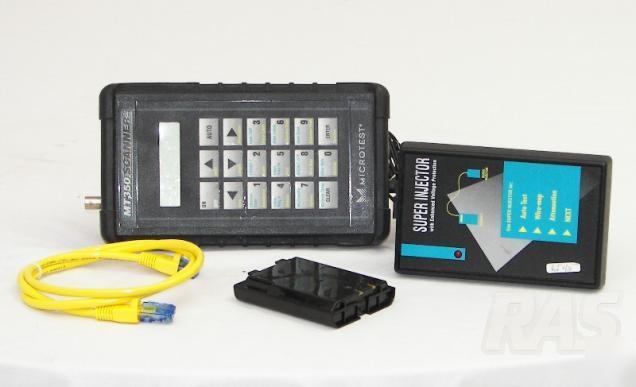

MICROTEST MT350 NETWORK TESTER w/Super Injector *WORKS*
Microtest MT350 Specifications:
* Europe with French documents #8100-03
* Europe with German documents #8100-04
* Europe with Spanish documents #8100-05
* 110V Transformer with Spanish documents #8100-09
* 110V Transformer with French documents #8100-10
* BNC, RJ-45 (10Base-T and Token Ring)
* All four pairs supported and fully operational for all functions
* Connector and cable: DB-9.Baud rate: 300 to 19,200 baud
* Protocol: XON/XOFF, TRS/CTS
* Coaxial: Range 20 to 4,000 feet
* Twisted pair: Range 20 to 2,000 feet
* Accuracy: + 4% plus NVP uncertainty, detects open/short faults, resolution 2 feet
* Tests all 6 pair combinations
* User-programmable frequency range from 0.2 to 20 MHz, in steps equal to 100 KHz range +60 to 0 dB
* Accuracy (12-78 pair): +1.5dB from -40 to 0 dB, +2dB from -50dB to -40dB, +3dB from -60dB to -50dB
* Determines worst case NEXT for all 6 pair combinations
* Accuracy: +1.5dB from -40 to 0 dB, +2dB from 50dB to -40dB
* Determines worst case attenuation on all four pairs over user programmable range, including 256KHz, 512KHz, 768KHz, 1MHz, 2MHz, 4MHz, 5MHz, 8MHz, 10MHz, 16MHz and 20MHz
* Uses one-way test as specified by IEEE/EIA
