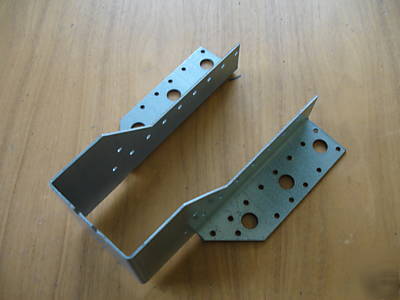

Joist hanger mft heavy duty any size made to order
Size range : 38mm - 150mm (width of joist)
Medium to Heavy Duty Multi-Functional Hanger for fixing Timber to Timber or Timber to Masonry.
Location tabs in the base of the shoe.
The TECO MFT can be nailed, screwed, bolted, coach screwed or a combination of fixings can be used.
Sizes available from 38 to 150mm wide including 44 and 90mm.
Fix using 30 x 3.75 square twist nails or above.
The hanger should be a minimum of over half (60%) the depth of the supported member to avoid rotation.
346 Hangers - 2 x M12, 25 x Nail or Screw holes
404 Hangers - 4 x M12, 33 x Nail or Screw Holes
504 Hangers - 6 x M12, 49 x Nail or Screw Holes
Material Specification: 2mm Pre Galvanised Mild Steel to BS EN 10327:2004 DX51D+Z275
Also available in Stainless Steel
For smaller sizes see the MFM, Mini GTS and Mini range.
Larger sizes or specials can be produced in the HWT style of Hanger.
I can also list the following sizes :
Please note standard delivery is for UK mainland. Delivery to Scotland, West Wales and Cornwall will carry an additional charge of 3.50. To deliver to the Highlands, Isle of Wight, Ireland and any worldwide location please contact me for a postage quote
FREE POSTAGE ON ALL ORDERS OVER 150
DISCOUNTS AVAILABLE FOR LARGE QUANTITIES, PLEASE ASK FOR MORE
