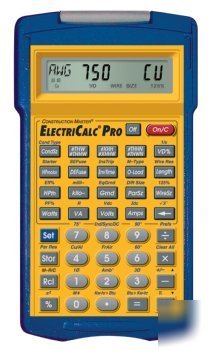

Calculated industries 5065 electricalc pro
Compliant with 2008*, 2005, 2002, 1999, 1996 NEC
Electrical Contractors, Designers, Electricians and Lighting Specialists solve tough electrical calculations in seconds and deliver those solutions in conformance with the latest NEC . The ElectriCalc Pro is a complete electrical reference tool that will save time, trouble and money. Update to future NEC updates with an easy-to-install kit. Includes Armadillo Gear protective Hard Case.
* NEC Table Number displayed when performing Wire Size calculations
* Service and Equipment Grounding Conductor Sizes
* Enter BTU to find Kilowatts per Hour
* Enter Kilowatts per Hour to find BTU
* Ohm s Law Calculations enter any two values to solve for the third
* Work directly in and convert between Amps, Watts, Volts, Volt-Amps, kVA, kW, PF% and EFF% and DC Resistance
* Calculate wire sizes per NEC 310-16 and 310-17; Copper or aluminum, 3 /1 , 60 C, 75 C, 90 C insulation ratings and 100% or 125% of ampacity. Adjust wire sizes for ambient temperatures other than 30 C and for more than three wires in a raceway
* Integrated voltage drop solutions. Find minimum VD wire size, maximum Length for any given wire size, drop percentage, actual number and percentage of Volts dropped
* Conduit sizing for 12 types of conduit. Per 2005 and 2008 NEC Table C1-C12, find sizing of all common conduits for any combination for #THW, #XHHW and # THHN wires. Plus, gives fill percentages, cross-sectional areas, remaining areas and more
* Find Motor Full-Load Amps per Current NEC . Works in 1 and 3 with the new expanded tables for 3 induction (to 500 hp) synchronous (to 200 hp) and DC motors per NEC 430-247, 430- 248 and 430-250.
* Calculates Fuse and Breaker Sizes. Solves fuse and breaker sizes per NEC 430-52
* Parallel and derated wire sizing
* NEC Table number Displays when performing Wire Sizes calculations
Sizes overload protection per NEC 430-32
* Automatically finds NEMA starter sizes.
* Ohm s Law Calculations enter any two values to solve for the third.
* Works as Standard Math Calculator with +, -, x, , +/-, %, , 1/x, X2, and .
* Auto Shut-Off extends battery Life, Memory
* Update to future code revisions with easy-to-install kit.
* Easy-to-follow User s Guide
* Handy Pocket Reference Guide
* Ergonomically designed, Armadillo Gear 360 flip-top cover protective case
Product Weight (Including Armadillo Gear Protective Hard Case and Pocket Reference Guide):
One 3-volt (CR-2032) Long-life Battery Included
