C&k electrical slide switch l series L230-01-1-ts-03-q

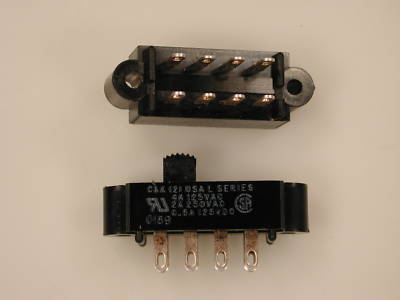

This is a L230-01-1-TS-03-Q Slide Switch
* Maintained and momentary functions
1. CONTACT RATING: Q contact material (LX0X, LX1X Models): 4 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC; 0.5 AMP @ 125 V DC (UL/CSA).
3. CONTACT RESISTANCE: Below 10 m typ. initial @ 2-4 V DC, 100 mA
6. OPERATING TEMPERATURE: -30 C to +65 C
7. STORAGE TEMPERATURE: -30 C to +85 C
1. HOUSING: 6/6 nylon (UL94V-2), black.
2. ACTUATOR: 6/6 nylon (UL94V-2), black. 13 actuator
3. CONTACTS: Q contact material: Copper with silver plated.
4. TERMINALS: Q contact material: Copper with silver plated.
More Information: http:// /14386/l_4feb.pdf/
