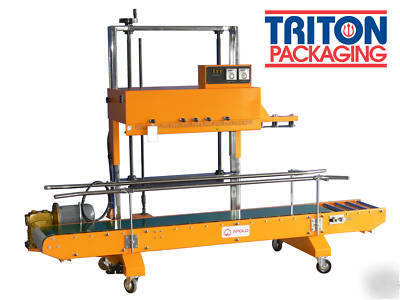

Apolo - cbs 2010 continuous vertical band sealer
NEW - IN BOX VERTICAL BAND SEALER
APOLO Vertical Continuous Band Sealer. (CBS-2000)
All Metal Construction (Powder Coated)

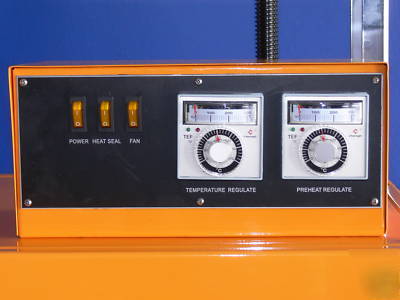

Dual Temperature Controllers/ Temperature Displays for Each Pair of Heating Bars
Speed: 8 mt/min (27.25ft/min)

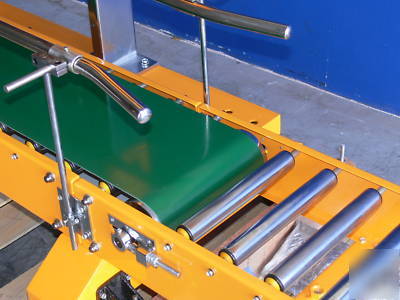

14 of Non-Motorized Rollers on Feed Area
Dual Temperature Adjustment: 0 - 300 C (572 F)
One pair of Brass Cooling Bars with Forced-air Cooling System
Two Pairs of Brass Heating Bars
Two Pairs of Pressure Rollers
5 Points Gap Adjustment for Optimal Bag Control
Distance From Middle of Seal Area to Conveyor: 16 (406mm) ~ 36 (914mm)
Maximum Bag Leftover (Excess) Over Seal: 5 (127mm)
Conveyor Guide with Height Adjustment
Breaker Switch For Maximum Protection
Maximum Bag Weight: 55 Lbs (25 kg)
Machine Size: 736mm (29 ) L x 2440mm (96 ) W x 1800mm (71 ) H
Total Conveyor Length: 96 (2450mm), 80 (2032mm) motorized
Conveyor Band Width: 10.5 (2670mm)
Boxed Size: 940mm (37 ) L x 2770mm (109 ) W x 1900mm (74 ) H
Machine Weight: 535 lbs (243 Kg)
Boxed Weight: 850 lbs (386 Kg)
