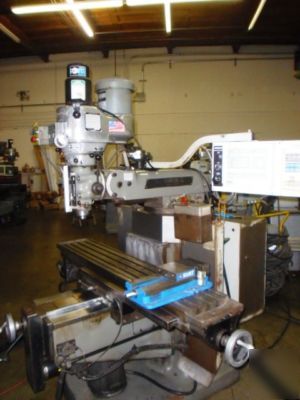

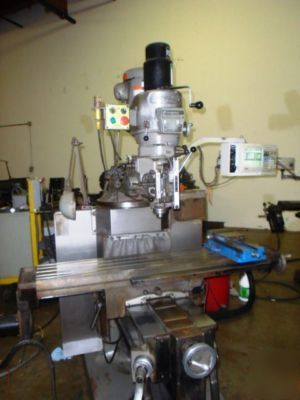

1996 bridgeport series ii ez-trak dx manual/cnc mill
Hallidie Machinery Co., Inc. is proud to offer for your consideration an USED Bridgeport Machines Series II EZ-TRAK DX Milling Machine, which enhances the world renowned Series II Special Milling Machine with ballscrews, DC servo motors on the X and Y axes, and a 2-axis, control.
The Bridgeport Series II EZ-Trak DX Milling Machine includes the following standard features:
Z-axis 5" (127mm) (3rd axis 4.4" 118mm)
* 3 hp (30 minute), 2 hp (continuous) duty rated, AC induction
spindle motor with spindle brake
* Infinitely variable spindle speeds:
Low gear: 60-500 rpm; High gear: 500-4200 rpm
* Optional programmable 3rd axis (R8 machines only)
* V-ram mounting for the milling head with tilting mechanism

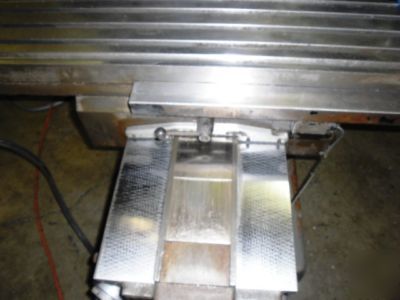

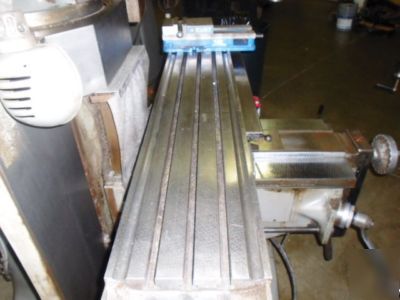

* Rugged 11" x 58" table on standard saddle and knee
* Large diameter ballscrews with stiff mounting brackets
* Power feeds on X and Y axes with 100 ipm rapid traverse rates
* Feedrates to 100 ipm, variable from 10% to 150%
* .0001" (.001mm) input resolution
* +/-.001" positioning accuracy over the saddle
* +/-.0008" repeatability over the saddle
* One-shot automatic central lubrication system
* Machine conforms to NFPA-79 specifications w/NEMA 12 enclosures
Control Specifications: (Bridgeport Trak DX)
* Bridgeport manufactured 2 Trak DX control
* Simultaneous 2-axis linear or circular interpolation for
* 1,000 events of program storage with display
* Conversational display that prompts for all program data and
also signals the operator when action is required
* Absolute and incremental programming or a combination for easy
input of dimensions directly from a blueprint
* Math Help mode calculates line, arc and circle intersections
* Powerful canned milling and drilling cycles for machining
circular pockets, rectangular pockets, frame milling, slots,
* Automatic corner rounding for inside and outside corners
* Cutter diameter compensation
* Graphics preview feature for program verification
* Teach mode for storing manual moves
* Full 3-axis DRO for manual operation
* Remote stop/start control device
* 4 mb Flashdisk (Minimum 1.5 mb program storage)
* RS-232C serial communications port, compatible with EZ-CAM/File
* Maintenance diagnostic and program error message display
Kurt Mechanical Power Draw Bar
One USED Bridgeport Series II EZ-Trak DX with 58" table -$12,500.00
