> 12" x 16" x 4" zenbot cnc router / engraver - mill,

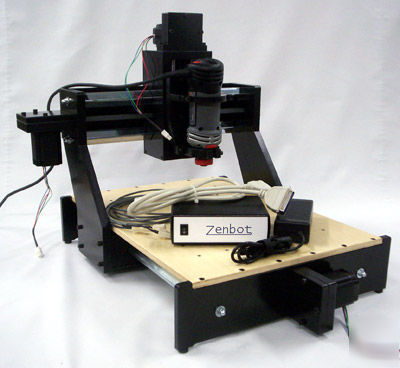

12" x 16" x 4" zenbot cnc router / engraver - mill,
This machine has the same phenomenal accuracy and speed as the popular original, but with 12 x 16 x 4 inches of travel. This rugged machine is an all new design made from HDPE with a proprietary linear motion system developed by Zenbot. The system features ball bearings preloaded on eloctroplated-zinc thick-walled steel rails. The result is a very stiff system with ultra smooth motion and zero slop. The Z axis features 5/8 inch Thomson brand hardened, polished steel rails with super oilite self-lubricating bronze linear bushings. The drive system features 3/8 inch wide kevlar-reinforced urethane timing belts on all 3 axes, resulting in ultra precise motion and blazing fast rapids (1000 inches per minute). The entire machine is bolted together with allen-head machine bolts so every part is replaceable. The grid on the large stationary table makes workpiece alignment a breaze, and the matrix of steel 1/4-20 threaded inserts make it simple to fasten the workpiece to the table. This machine is ideal for making Pcb's (printed circuit boards), plaques, trophies, model airplanes, 3-d puzzles, picture frames, vaccuum molding plugs, lighted lexan signs, business card holders as well as larger woodworking projects. Three-axis simultaneous smooth contouring enables the machine to be used as a subtractive rapid prototyping machine.
Motors- 4 wire bipolar 276 ounce/in Nema-23
Rapids: 800 inches per minute
* Comes with motors, motor cables with connectors, control box, power supply (works with all voltages and frequencies, just needs an adapter from US plug to your country's plug), and parallel (printer) cable. (rotozip not included)
* Constructed of extremely durable HDPE (High Density Polyethylene) with a true Baltic Birch 11-ply plywood top.
* Matrix of threaded steel inserts in the table for convenient fastening of the workpiece.
* Kevlar-reinforced urethane MXL timing belts on all 3 axes
* ball bearings preloaded on on 1 " square 1/8" thick walled steel tubing on X axis and 1.25" square steel tubing on Y axis for ultra smooth motion with zero slop.
* Z axis features 5/8 inch Thomson brand hardened linear rail with super-oilite self-lubricating bronze bushings. Replaceable.
* Assembled entirely with steel bolts so all parts are replaceable.
* Spindle mounts available for Rotozip, Bosch Colt, Proxxon, and Dremel (specify mount when ordering)
* All parts are cut on a professional cnc router to snap or press-fit tolerances to ensure proper fit and alignment.
* 1 year warranty on manufacturer's defects. (does not cover abuse) Replacement parts available.
What is needed (not included)
* Rotozip, or other spindle option
* A personal computer which meets Mach-3's minimum requirements
* Software. Mach-3 control software can be downloaded free at . The software is easy to use, and the website has many video tutorials which guide you through installation, setup, and use. If you are new to CAD/CAM you will enjoy Mach-3's wizards which guide you step-by-step through numerous operations such as text engraving, cutting a rectangular or circular pocket, or drilling a bolt pattern. Free Demo version is limited to 250 lines of G-code at a time, but will last indefinately. Full version retails for $175.
* Cam software. Free trial of Lazy CAM, is now included with the download of Mach-3. Vectric ( ) has many affordable software packages available that can do anything you might need. Their basic "cut-2d" program sells for $149.
Free CAD software can be found at: /cad/cad.htm
Andorra, Luxembourg, Austria, Macao, Azerbaijan, Malta, Belgium, Netherlands, Canada, Denmark, New Zealand, Finland, Norway, France, Poland, Germany, Portugal, Gibraltar, San Marino, Great Britain and Northern Ireland Slovak Republic (Slovakia), Greece, Spain, Hong Kong, Ireland, Sweden, Italy, Switzerland, Japan, Vatican City, Liechtenstein.
NOTE: machinery can be dangerous, and router bits do break. We will not be held responsible for personal injury incurred during the operation of this machine. Operators shall be trained and observe all appropriate safety precautions. All proper protective gear including safetyglasses/face shield shall be worn at all times while machine is in operation.
