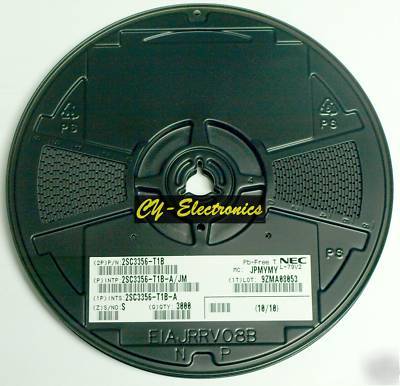

10 pcs npn transistor 2SC3356-T1B nec
Type: 2SC3356-T1B, MICROWAVE LOW NOISE AMPLIFIER
The 2SC3356 is an NPN silicon epitaxial transistor designed for low
noise amplifier at VHF, UHF and CATV band.
It has dynamic range and good current characteristic.
NF = 1.1 dB TYP., Ga = 11 dB TYP. @VCE = 10 V, IC = 7 mA, f = 1.0 GHz
MAG = 13 dB TYP. @VCE = 10 V, IC = 20 mA, f = 1.0 GHz
Absolute Maximum Ratings (TA = 25 _C)
Collector to Base Voltage VCBO 20 V
Collector to Emitter Voltage VCEO 12 V
Emitter to Base Voltage VEBO 3.0 V
Junction Temperature Tj 150 _C
Storage Temperature Tstg _65 to +150 _C
