Lincoln electric ln-35 wire feeder - K2281-1

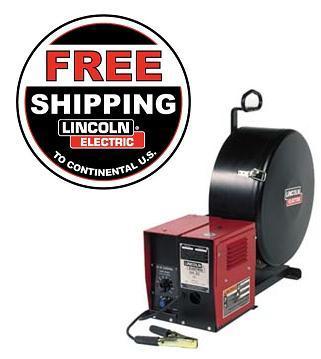

Lincoln Electric LN-35 Wire Feeder
The LN-35 is an across-the-arc, semiautomatic wire feeder for hardfacing and fabrication applications using self-shielded, flux-cored welding electrodes. Complete with wire reel stand for up to 60 lb. (27.2 kg) coils, the LN-35 is designed for maximum versatility and portability in a variety of field applications. Wire feeding performance is backed with a dynamic braking system that stops the wire feed motor quickly to minimize wire overrun. This wire feeder is easy to use, with a large wire feed speed knob that is easy to adjust with gloved hands.
The LN-35 is designed to feed .035 - 7/64" (0.9-2.8mm) flux-cored electrodes.
Enhanced starting control for smooth arc starting in CV mode.
Electronic circuits protect wire feeder from overload.
Adjustable wire feed speed for settings of 50-500 ipm (1.3-12.8m/min).
Note: A constant voltage (CV) power source is recommended for self-shielded, flux-cored arc welding (FCAW-S). The LN-35 may be used with a constant current (CC) power source for non-critical applications where weld quality and deposition properties are not critical.
Dimensions (in): 27 H x 10 W x 30 D
Wire Speed: 50-500 rpm, 1.3-12.7 m/min
