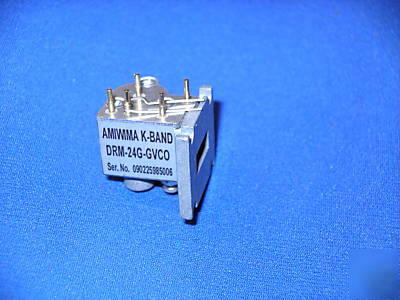

Fmcw vco radar transceiver 24GHZ k-band gunnplexer
You get a new microwave 24 GHz K-band radar VCO gunn transceiver module with WR-42 waveguide flange. The module has a mechanically frequency adjustable gunn oscillator with varicap for electrical tuning and 2 mixer diodes. The small transceiver can be used as rf part for long range doppler radar speed detector, doppler movement and direction finder and in FMCW mode for distance measurements. It can be used as RF signal source and as transmitter and receiver in the K-band for FM applications like audio or video transmissions. In a K-Band FMCW radar application you can measure the distance to objects, in FSK applications data can transmit and receive data. In a VCO application you can use it as test module for testing doppler sensors and to measure the sensitivity of microwave receivers or K-band radar detectors.
K-Band Module Gunn Oscillator Cavity
RX Frequency: 24.125 GHz (doppler)
Tuning range: Mechanical several 100 MHz
Tuning Frequency: Electrical 55 MHz min.
IF Output: I / Q Mixer output Motion & Direction
RF Output: Wr-42 waveguide flange
Temperature drift: 1 MHz/deg C
Power requirements: 5VDC @ 145mA max.
Dimensions: 1.0 x 1.0 x 0.8 in or 26 x 25 x 20 mm
Different types of antennas with WR-42 flange available. FMCW modules with integrated Flat antennas available. Application design support @ extra costs.
